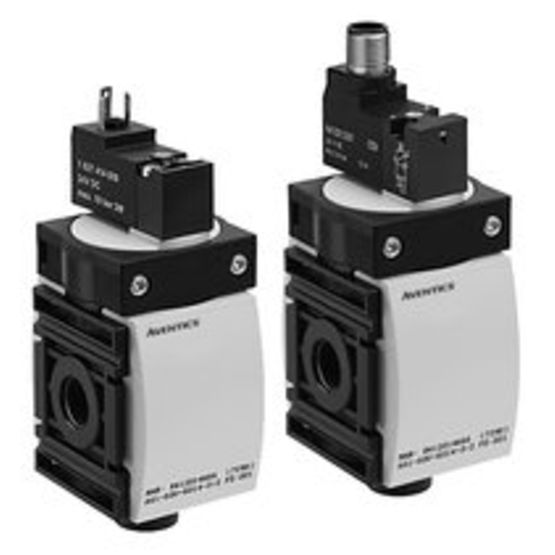

AVENTICS AS1-SOV Series 3/2 Directional Poppet Valve, 24 VDC, G 1/4, Left Air Supply, 2 to 10 bar

Manufacturer: Asco LP

Mfg Product Code: R412010680

Weight: 2.0 lb(s)

3/2 Directional Poppet Valve, 24 VDC, G 1/4, Left Air Supply, 2 to 10 bar

Features

• Activation: Electrically
• Nominal flow Qn: 2000 l/min
• Version: NC
• Compressed air connection: G 1/4
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Sealing principle: Soft Seal
• Pilot: Internal
• Connection type: Pipe connection
• Parts: 3/2-directional valve
• Can be assembled into blocks: Can be assembled into blocks
• basic valve with electrical connector: Basic valve with pilot valve
• Type: Poppet valve
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 50 °C
• Medium: Compressed air, Neutral gases
• Max. particle size: 25 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Compressed air connection, exhaust: G 1/4
• Air supply: left
• Nominal flow Qn 1 to 2: 2000 l/min
• Nominal flow Qn 2 to 3: 380 l/min
• Power consumption DC: 2 W:
