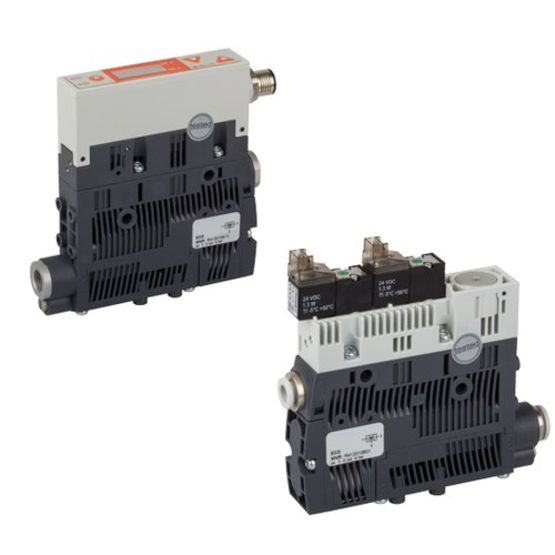

AVENTICS ECD-BV Series Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Closed

Manufacturer: Asco LP

Mfg Product Code: R412010601

Weight: 2.0 lb(s)

Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Closed

The AVENTICS Series ECD is an all-inclusive solution that combines vacuum generators, pilot valves, filters, silencers and pressure switches. Simplify installation and optimize your energy footprint by opting for the air economizer function, and increase your degree of status monitoring with the condition monitoring function.

Features

• Activation: Electrically
• with silencer: with silencer
• Nozzle Ø: 1 mm
• Accessories: with non-return valve
• Working pressure min.: 2 bar
• Working pressure max: 6 bar
• Working pressure p.opt.: 4 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 50 °C
• Medium: Compressed air
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 1 mg/m³
• Max. particle size: 5 µm
• Max. suction capacity: 35.4 l/min
• Air consumption at p.opt.: 46.2 l/min
• Max. vacuum level at p.opt: 81.5 %
• Sound pressure level intake effect: 63 dB
• Sound pressure level intake effect: 76 dB
• release valve: release valve
• Protection class according to EN 60529:2000, without electrical connector: IP40
• Duty cycle according to DIN VDE 0580 standard: 100 %
• DC operating voltage: 24 V
• Voltage tolerance DC: - 5% / +10%:
