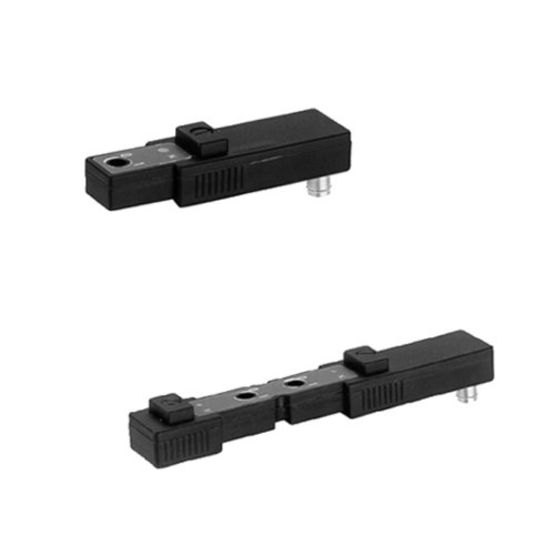

AVENTICS CON-CB Series Contact Bridge, 1 Coil, PEBA, 24 VDC, 4-Pin Plug to 2-Pin Plug

Manufacturer: Asco LP

Mfg Product Code: R412005847

Weight: 0.05 lb(s)

Contact Bridge, 1 Coil, PEA, 24 VDC, 4-Pin Plug to 2-Pin Plug

The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.

Features

• Number of solenoid coils: 1
• Min. ambient temperature: -15 °C
• Max. ambient temperature: 50 °C
• Protection class: IP65
• Protective circuit: 43 V bi-directional
• Electrical connection 1: Plug
• Number of poles: 4-pin
• Cable exit: straight
• Cable exit angle: 180°
• Electrical connection 2: Socket
• Electrical connection 2: form C
• Number of poles: 2-pin
• Cable exit: straight
• Operational↩voltage: 24 V
• Operational↩voltage: DC
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Valve LED status display: Yellow
• Mounting screw: M2.5 with slot
• Tightening torque for mounting screws +0,05: 0.25 Nm
• Weight: 0.02 kg
• Housing: Polyester amide
• Seals: Fluorocaoutchouc:
