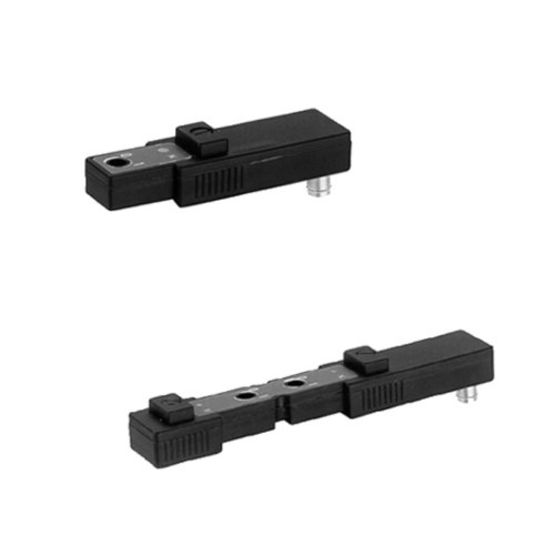

AVENTICS CON-CB Series Contact Bridge, 2 Coils, PEBA, 24 VDC, 4-Pin Plug to 2-Pin Plug to 2-Pin Socket
Manufacturer: Asco LP
Mfg Product Code: R412005846
Weight: 0.07 lb(s)
On Hand: 0
Contact Bridge, 2 Coils, PEA, 24 VDC, 4-Pin Plug to 2-Pin Plug to 2-Pin Sckt
The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Number of solenoid coils: 2
- Min. ambient temperature: -15 °C
- Max. ambient temperature: 50 °C
- Protection class: IP65
- Electrical connection 1: Plug
- Number of poles: 4-pin
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection 2: Socket
- Electrical connection 2: form C
- Number of poles: 2-pin
- Cable exit: straight
- Electrical connection 3: Socket
- Electrical connection 3: form C
- Number of poles: 2-pin
- Cable exit: straight
- Operational↩voltage: 24 V
- Operational↩voltage: DC
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Valve LED status display: Yellow
- Mounting screw: M2.5 with slot
- Tightening torque for mounting screws +0,05: 0.25 Nm
- Weight: 0.03 kg
- Housing: Polyester amide:
