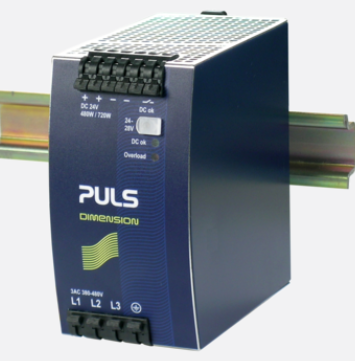

Representative photo. Please check item description for details.
Puls Power Supply, 480W, 380-480VAC 3PH, 24-28VDC, 20-17.5A
Manufacturer: Puls Lp
Mfg Product Code: QT20.241
Weight: 2.0 lb(s)
On Hand: 0
The Puls QT20.241 is a three-phase DIN rail power supply. It delivers 24V DC output at 20A, suitable for demanding industrial applications. This unit features high efficiency and a compact design, ensuring reliable performance in harsh environments.
Features
- 3AC 380-480 V Wide-range Input
- Also Specified for 2-Phase Operation
- Extra Long Lifetime
- 95 % Full Load and Excellent Partial Load Efficiencies
- Width only 65 mm, Weight only 870 g
- 50 % BonusPower, 720 W for up to 4 s
- Active Power Factor Correction PFC
- Active Filtering of Input Transients
- Full Power Between -25 °C and +60 °C
- Extremely Low Input Inrush Current Surge
- DC-OK Relay Contact
- Quick-connect Spring-clamp Terminals
Puls Power Supply, 480W, 380-480VAC 3PH, 24-28VDC, 20-17.5A
