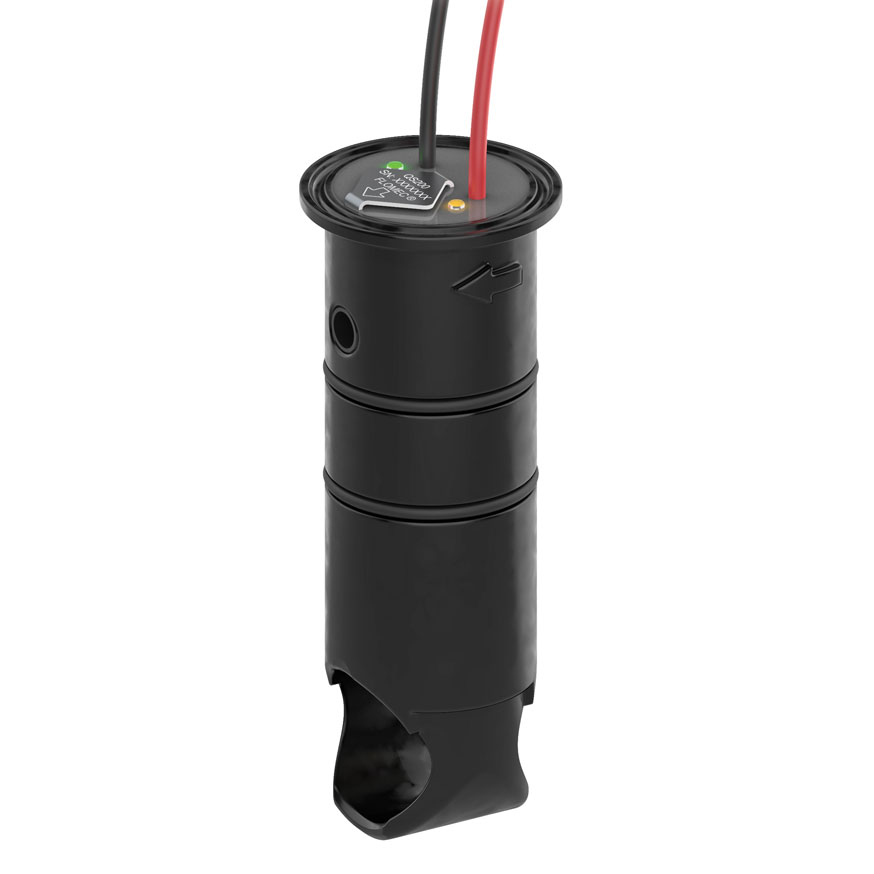

Flomec QS200 Series Ultrasonic Flow Sensor Electronics Insert for Schedule 80 PVC Tee or Saddle for Water

Manufacturer: Great Plains Industries (GPI/Flomec)

Mfg Product Code: QS200

Weight: 1.5 lb(s)

Operating Temperature: 32° F to 140° F (0° C to 60° C)
Storage Temperature: -20° F to +160° F (-29° C to +71° C)
Flow Range: 0.1 to 15 fps (0.03 to 4.6 m/s)
Accuracy: Typically ±2% of reading
Operating Pressure: 150 psi @ 73° F (10 bar @ 23° C)
100 psi @ 140° F (7 bar @ 60° C)
Transducer Excitation: Supply Voltage: 7.5V (dc) min. to 36V (dc) max
Quiescent Current: 200 μA (typical)
Output Frequency: 0 to 100 Hz
Output Pulse Width: 4 ms
Electrical Cable for Insert Electronics: 36 inches (914.4 mm) of 18 AWG, solid copper, “Direct Burial” (UL 493 & 83)

The FLOMEC QS200 ultrasonic flow sensor insert is designed for above and below grade applications such as turf, irrigation, municipal and underground water monitoring.

QS200 monitors flow rates between 0.1 to 15fps (0.03 to 4.6 m/s) and works in applications below 140° F (60° C). In addition to its low-flow capabilities, ultrasonic technology means no moving parts to wear out or fail when winterizing systems using compressed air – making it a great replacement of existing paddlewheel flow sensors

QS200 sensors are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.

Also available with Schedule 80 PVC Tee

Features & Benefits

• Unmatched Durability: No mechanical parts means this ultrasonic water meter needs zero maintenance for winterization and has no flow restrictions, making it nearly indestructible
• Exclusive Ultrasonic Technology: Most accurate water flow sensor in the industry with an unprecedented accuracy +/-2% of reading
• Flexible Metering Solutions: Fits great with turf and landscape irrigation systems, golf course, agriculture irrigation, drip irrigation and commercial agriculture applications. Has the best low flow capabilities in the turf irrigation market, detecting flows as low as 0.1 fps.
• Easy Installation and Operation: Power and signal LED lets you know the meter is functioning properly. Installed in Sch 40 and Sch 80 above or below grade installations for maximum versatility.
• Conventional irrigation: Two-wire connection (for power and pulse)
