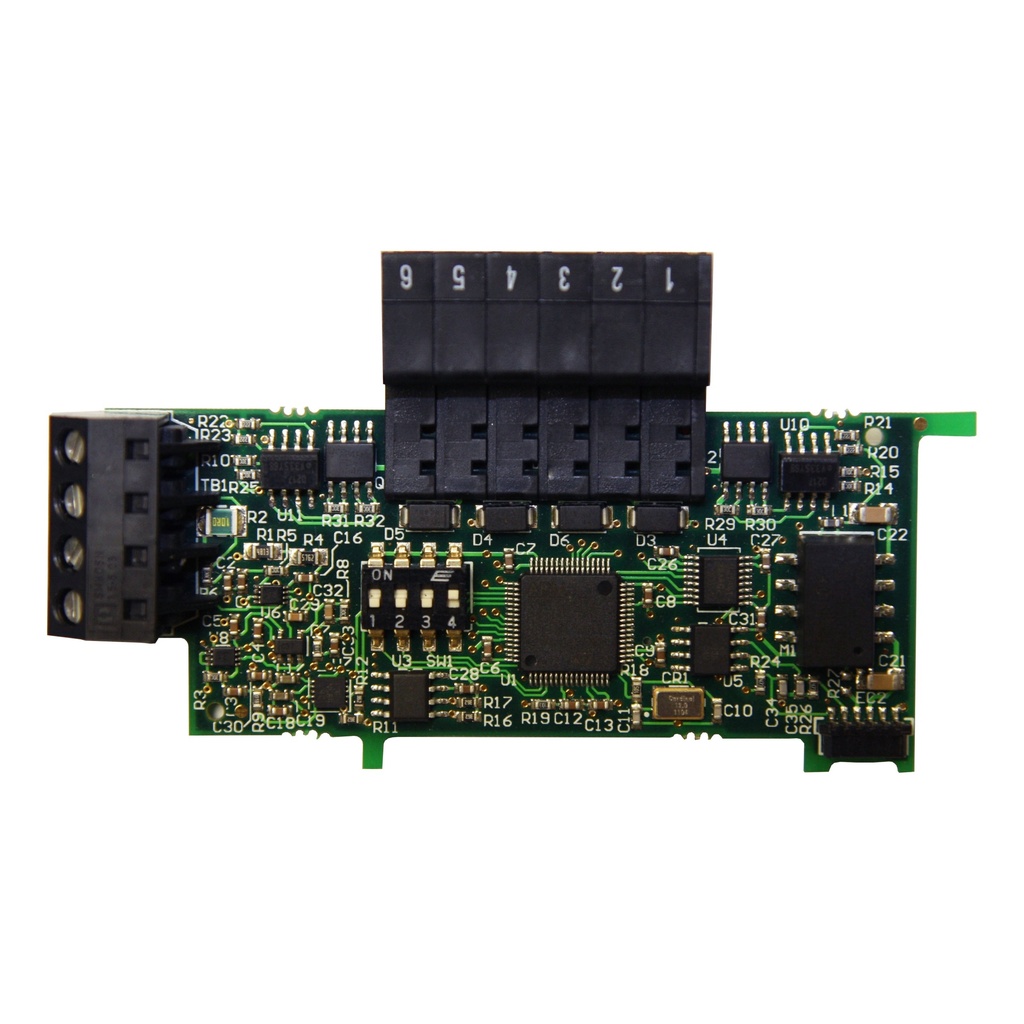

PX2FCA00 - FlexCard™ - Process Input/Remote Setpoint Card

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: PX2FCA00

Weight: 0.06 lb(s)

For Use in PAX2 units with FlexBus®option. Input Ranges: 0 to 10 VDC, 0 to 20 mA DC A/D Conversion: 16 bit, 6.8 samples/second Input Specifications: Input Range: 10 V / 20 mA Accuracy: 0.1% of span Input Impedance: 538 KΩ (@ 10 V) / 10 Ω (@ 20 mA) Max Input Signal: 30 V (@ 10 V)/ 150 mA (@ 20 mA) Output Specifications: Four Solid-State NFET outputs Type: Switched DC, N Channel open drain MOSFET Current Rating: 1 A DC max VDS ON: < 0.2 V @ 1 A VDS Max: 30 VDC Offstate Leakage Current: 0.5 μA max. Output Power Supply (+Vout): 18 to 25 VDC @ 40 mA maximum
