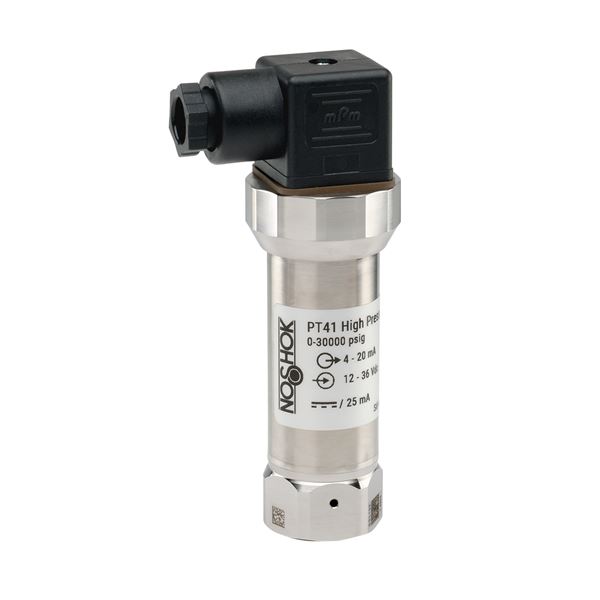

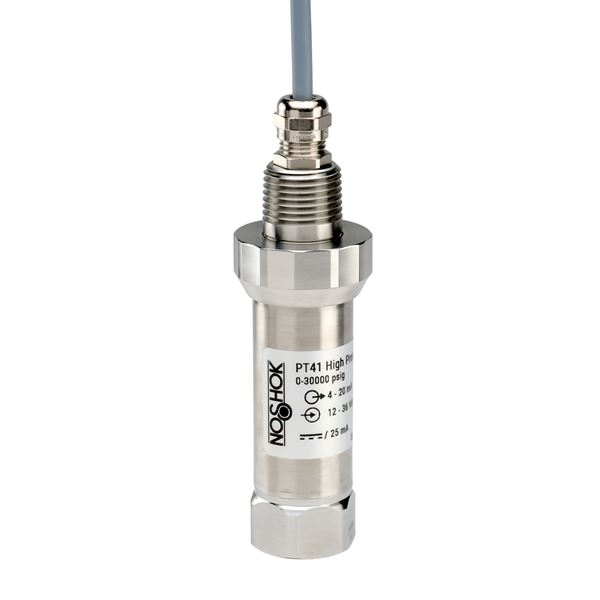

PT41 Series High Pressure, Fixed Range Pressure Transmitter
Manufacturer: Noshok Inc
Mfg Product Code:
On Hand: 0
Features
- Gauge ranges from 23,000 psig to 145,000 psig
- Current and voltage outputs available
- Elgiloy and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PT41 Series High Pressure, Fixed Range Pressure Transmitter
Transmitters: Housing Material:316 SS
Transmitters: Process Connection Material:17-4PH SS
Transmitters: Measuring Element Material:Elgiloy, 17-4PH SS
Transmitters: IP Rating:IP65, IP67
Transmitters: Response Time:< 1ms
Transmitters: Adjustment:±10% FS
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
Noshok PT41 Series | |
---|---|
Pressure Range | [23000psig] 0 pisg to 23,000 psig or [30000psig] 0 psig to 30,000 psig or [36000psig] 0 psig to 36,000 psig or [58000psig] 0 psig to 58,000 psig or [72000psig] 0 psig to 72,000 psig or [87000psig] 0 psig to 87,000 psig or [100000psig] 0 psig to 100,000 psig or [115000psig] 0 psig to 115,000 psig or [145000psig] 0 psig to 145,000 psig |
Accuracy | [1] ±0.5% Full Scale or [2] ±0.25% Full Scale |
Output Signal | [1] 4 mA to 20 mA, 2-wire or [2] 0 Vdc to 5 Vdc, 30wire or [5] 0 Vdc to 10 Vdc.3-wire |
Process Connection | [6] 9/16-18 UNF 3B high pressure cone (female) or [51] M20 x 1.5 female thread with sealing cone |

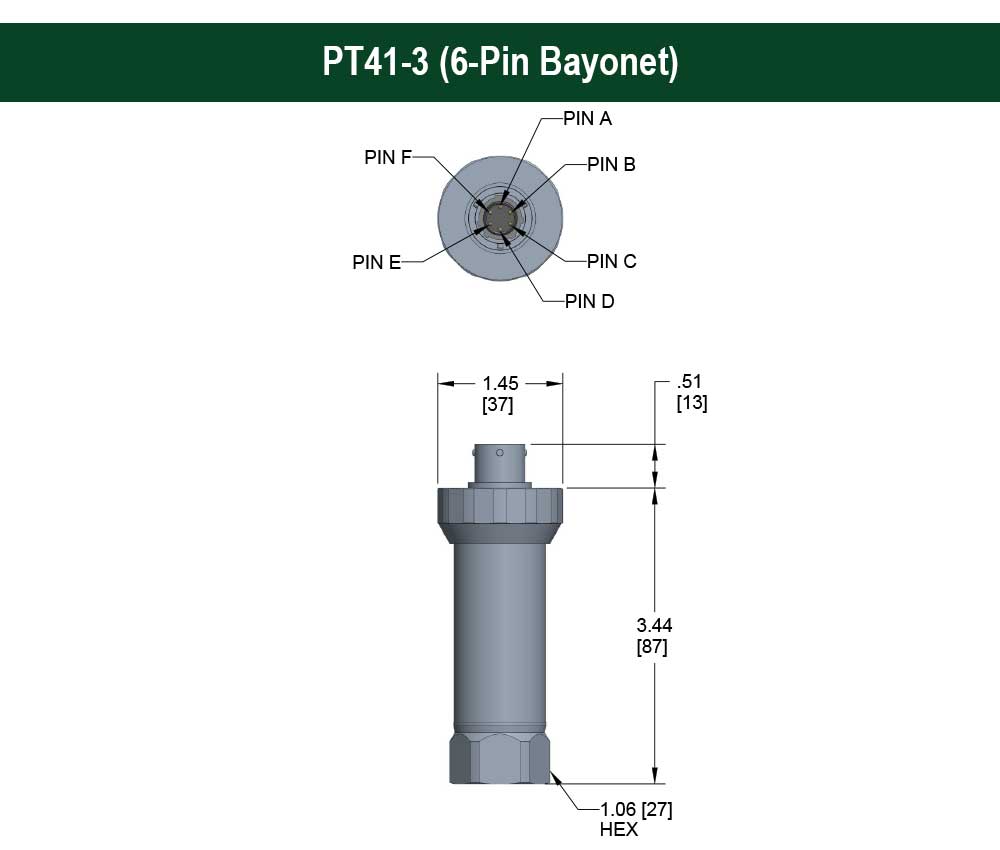

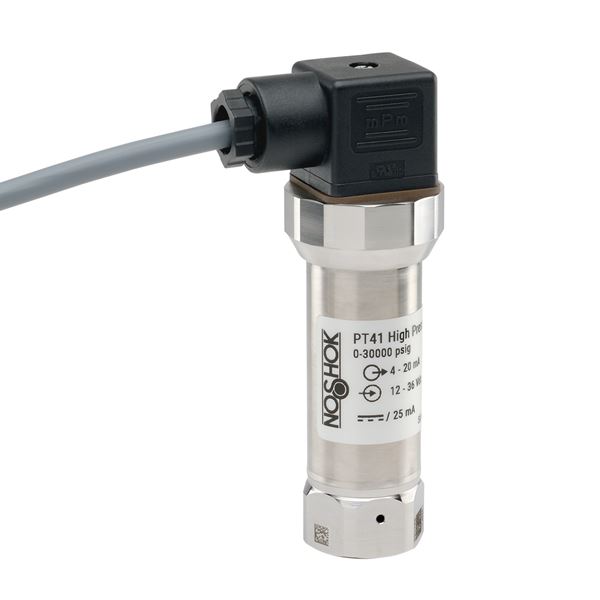

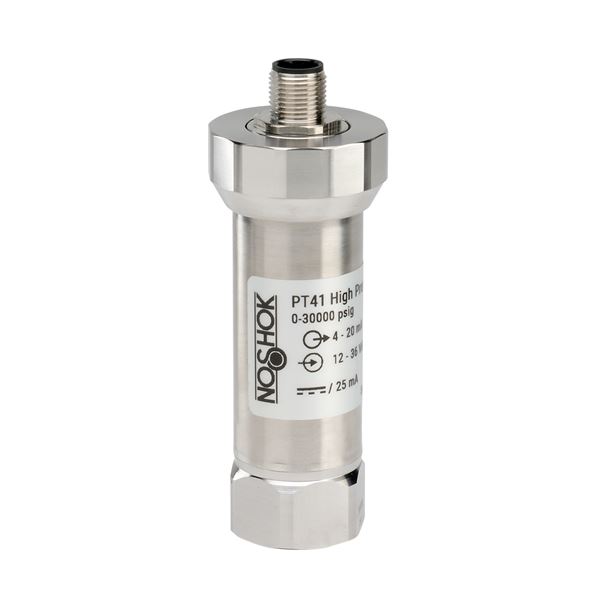

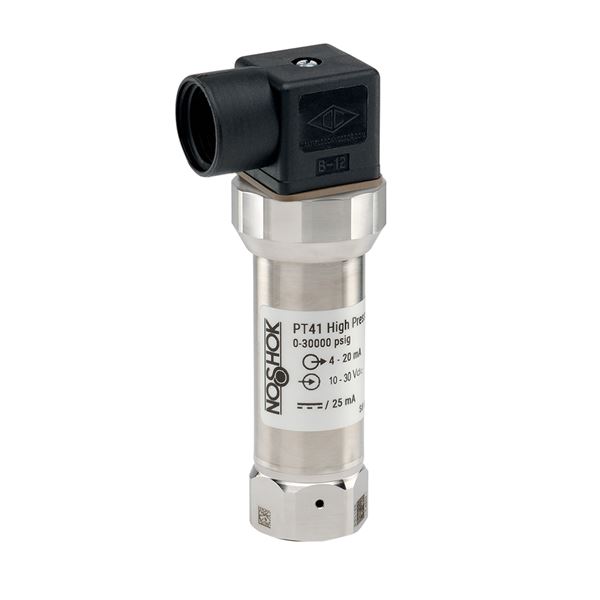

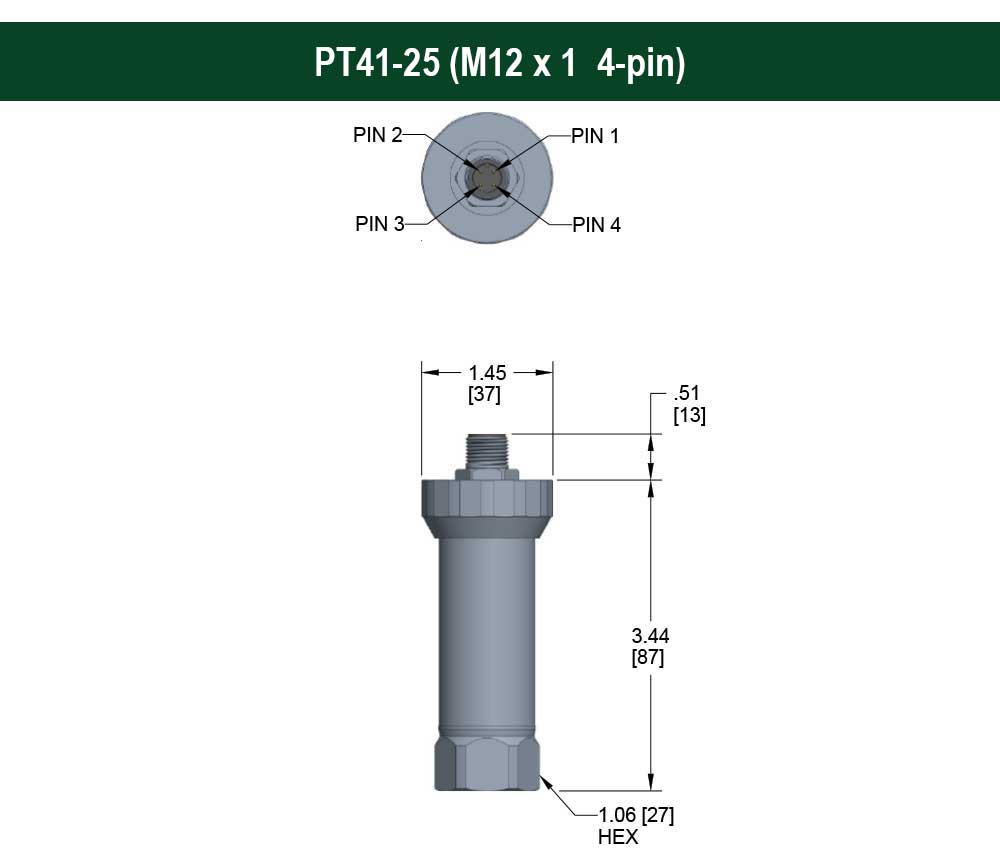

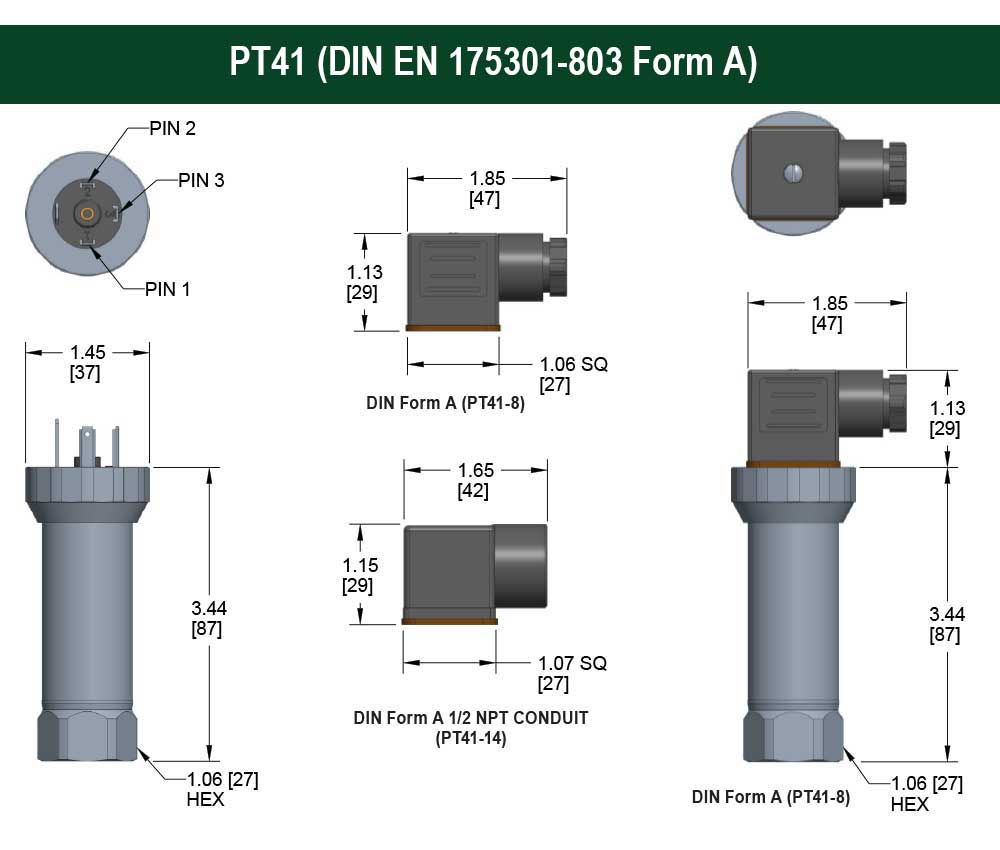

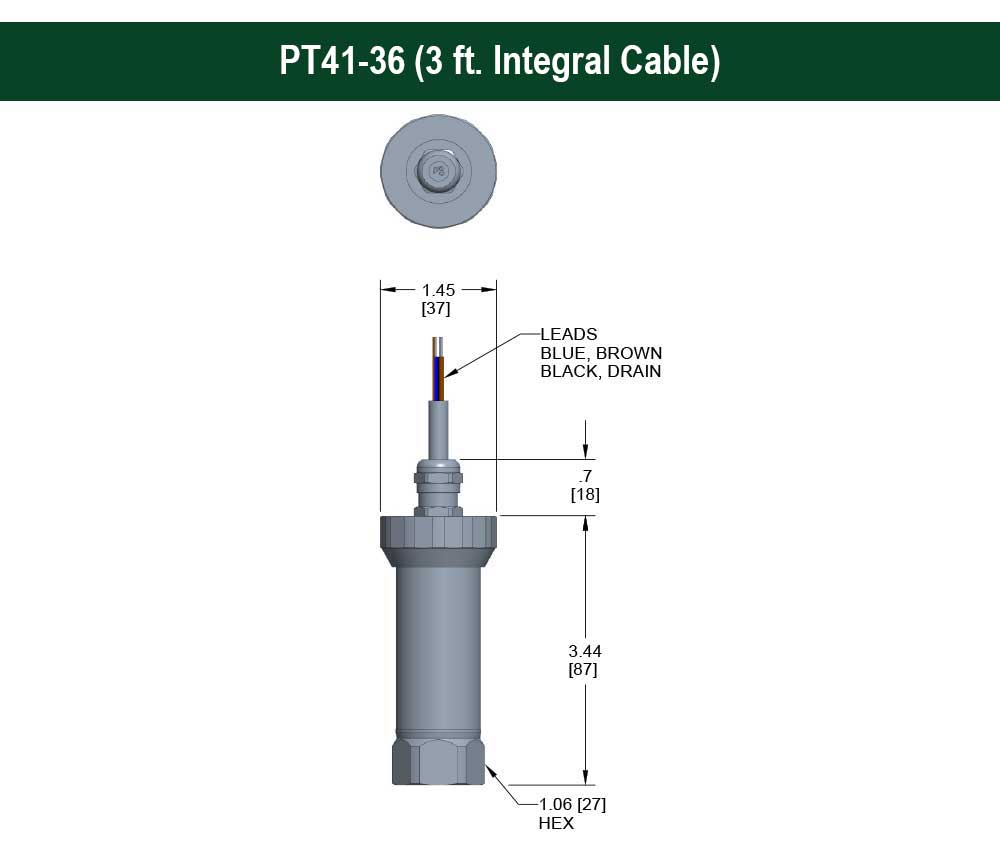

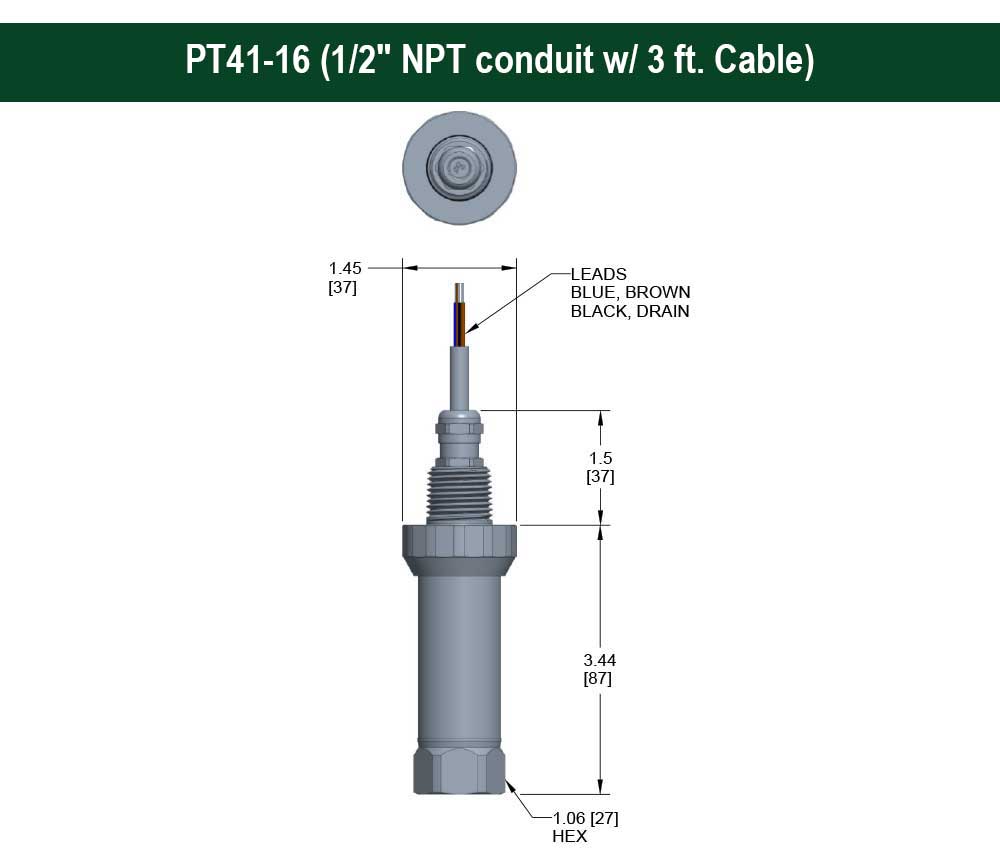

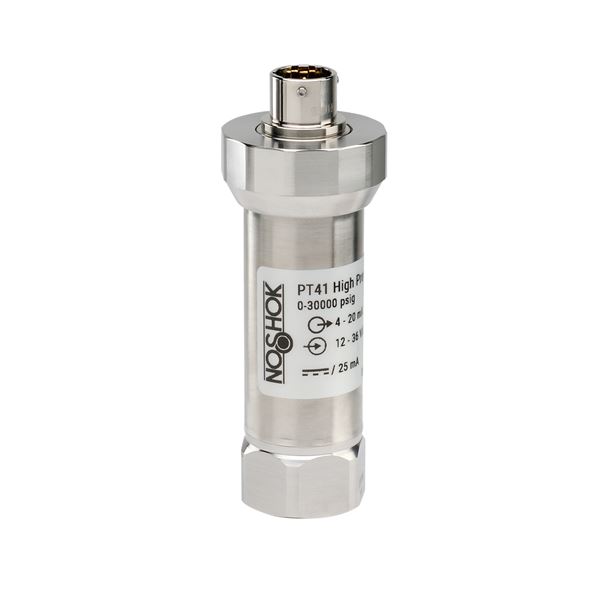

Electrical Connection | [3] 6-Pin Bayonet or [8] DIN EN 175301-803 Form A or [16] 1/2 NPT Conduit w/ 3 ft. cable or [14] DIN EN 175301-803 Form A w/ 1/2" NPT female conduit or [18] DIN EN 175301-803 Form A w/ 3 ft. cable or [25] M12 x 1 (4-pin) or [36] 3 ft. integral cable |
Transmitter Features | |
---|---|
Transmitters: Housing Material | 316 SS |
Transmitters: Process Connection Material | 17-4PH SS |
Transmitters: Measuring Element Material | Elgiloy, 17-4PH SS |
Transmitters: IP Rating | IP65, IP67 |
Transmitters: Response Time | < 1ms |
Transmitters: Adjustment | ±10% FS |
