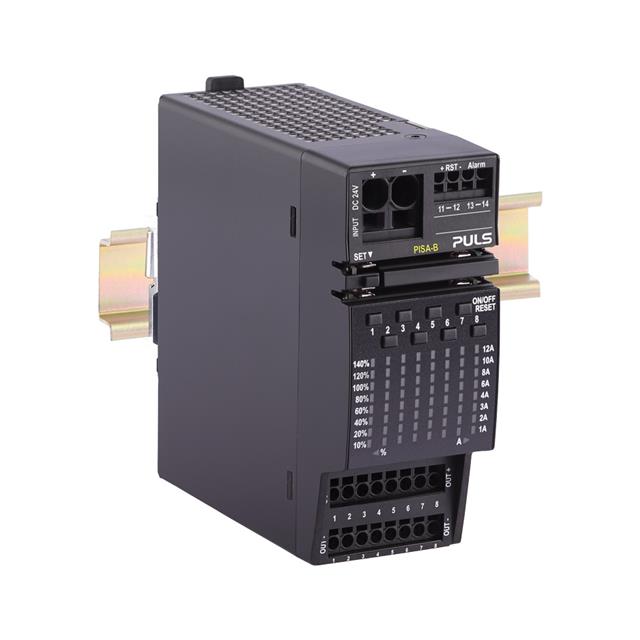

Puls Protection Module, DC 24V, Output: 8x3.75A, NEC Class 2, Common Signaling Contact

Manufacturer: Puls Lp

Mfg Product Code: PISA-B-8CL2-B1

Weight: 0.9 lb(s)

Input data
DC Input voltage DC 19.2 V - 30 V
DC Input current at no load, typ. 40 mA
Input voltage required to switch on the outputs, typ. 19 Vdc
Output data
Output current (sum of all outputs) 30 A
Turn-on delay of outputs 750 ms
Overview
Dimensions (WxHxD) 52 mm x 124 mm x 130 mm
Weight per unit (excl. packaging) 370 g
Mounting method DIN rail
Housing material Metal
Operating temp. range -25 °C to 70 °C
Connection method Push-in clamps
Power losses, typ. 7 W
No-load losses, typ. 1 W
MTBF SN 29500 @ 40 °C (h) 596000 h

The Puls PISA-B-8CL2-B1 is a robust and efficient power supply unit designed for industrial use. It provides reliable power output and is engineered to perform under demanding conditions. This model is ideal for applications requiring consistent performance and durability.

Features

• Eight current controlled outputs
• NEC Class 2 compliant
• Adaptive voltage-dependent current limitation for maximal output power according to NEC Class 2
• Selective tripping of overloaded channels
• Compatible even with large capacitive loads
• Output currents displayed live on LED matrix
• Remote reset or reset via pushbutton
• Common alarm signal for tripped channels
• Parameter settings can be locked by PIN-code
• ON/OFF feature for each individual output
• Easy wiring - distribution terminals for negative pole
