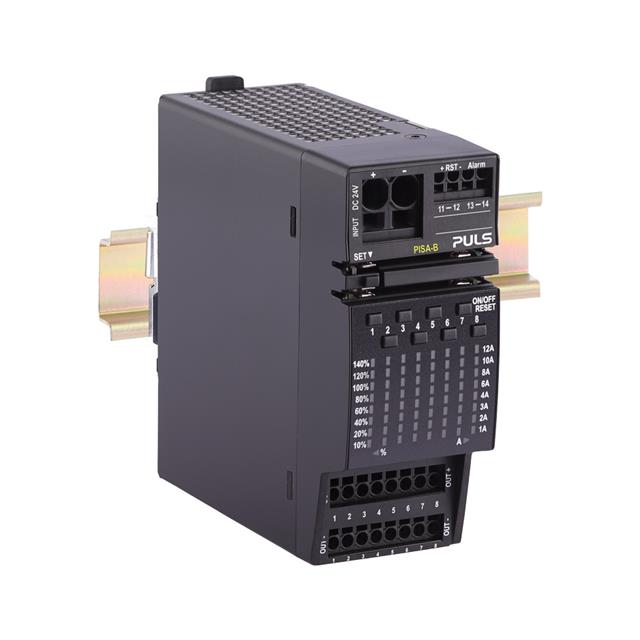

Puls Protection Module, DC 24V, Output: 2x 1-12A 6x 1-10A Adjustable, Digital Coded Signaling Contact

Manufacturer: Puls Lp

Mfg Product Code: PISA-B-812-B4

Weight: 0.9 lb(s)

Input data
DC Input voltage DC 19.2 V - 30 V
DC Input current at no load, typ. 35 mA
Input voltage required to switch on the outputs, typ. 19 Vdc
Output data
Output current (sum of all outputs) 40 A
Turn-on delay of outputs 750 ms
Overview
Dimensions (WxHxD) 52 mm x 124 mm x 130 mm
Weight per unit (excl. packaging) 370 g
Mounting method DIN rail
Housing material Metal
Operating temp. range -25 °C to 70 °C
Connection method Push-in clamps
Power losses, typ. 10.8 W
No-load losses, typ. 1 W
MTBF SN 29500 @ 40 °C (h) 507000 h

The Puls PISA-B-812-B4 is a board-mount power supply for embedded applications. It provides a reliable 12V DC output. This compact unit is designed for seamless integration into various electronic systems.

Features

• Eight current controlled outputs
• Adjustable output currents for each channel
• Selective tripping of overloaded channels
• Compatible even with large capacitive Loads
• Output currents displayed live on LED matrix
• Remote reset or reset via push-buttons
• Digital coded alarm signal for tripped channels
• Parameter settings can be locked by PIN-code
• ON/OFF feature for each individual output
• Easy wiring - distribution terminals for negative pole
