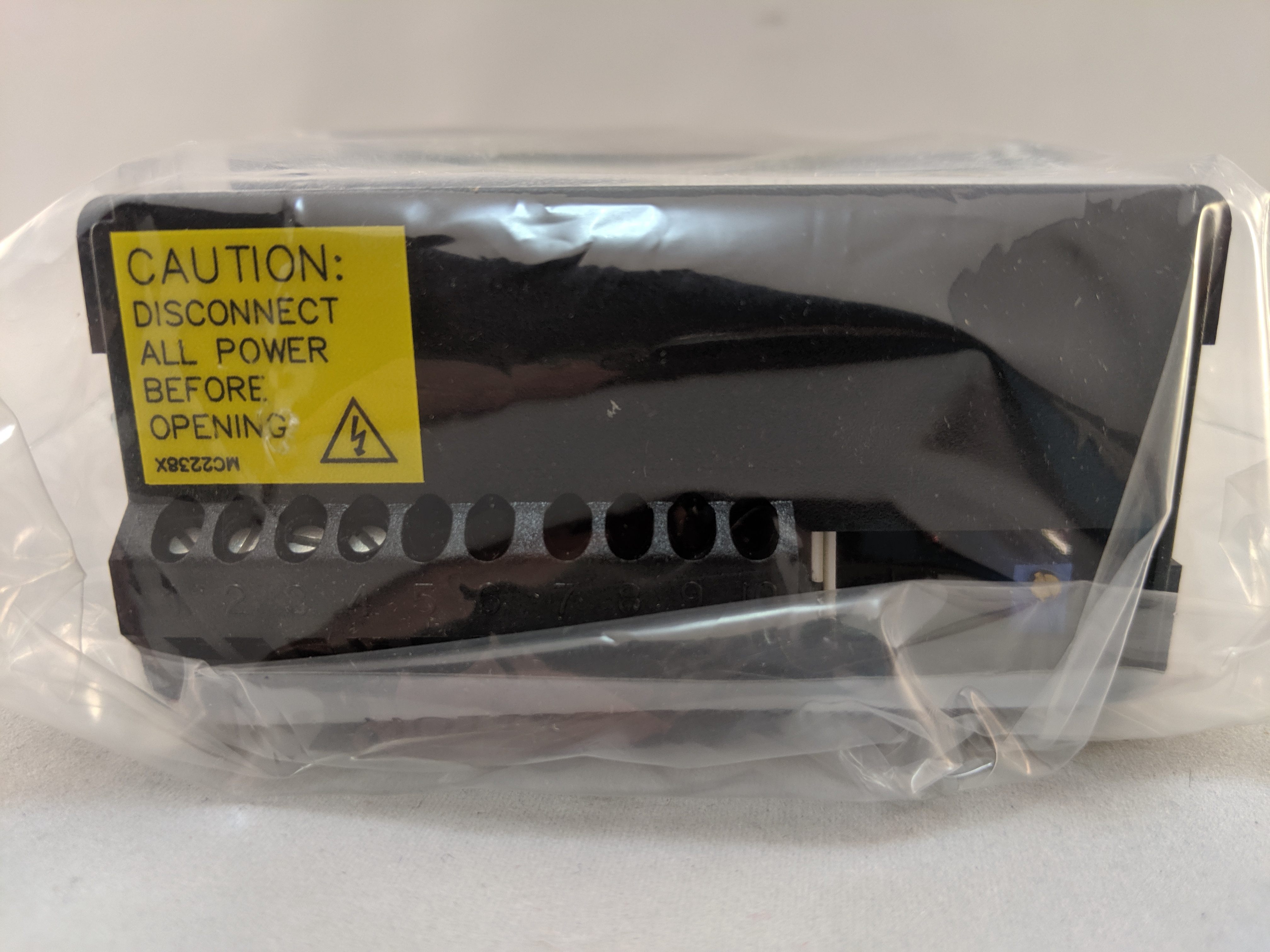

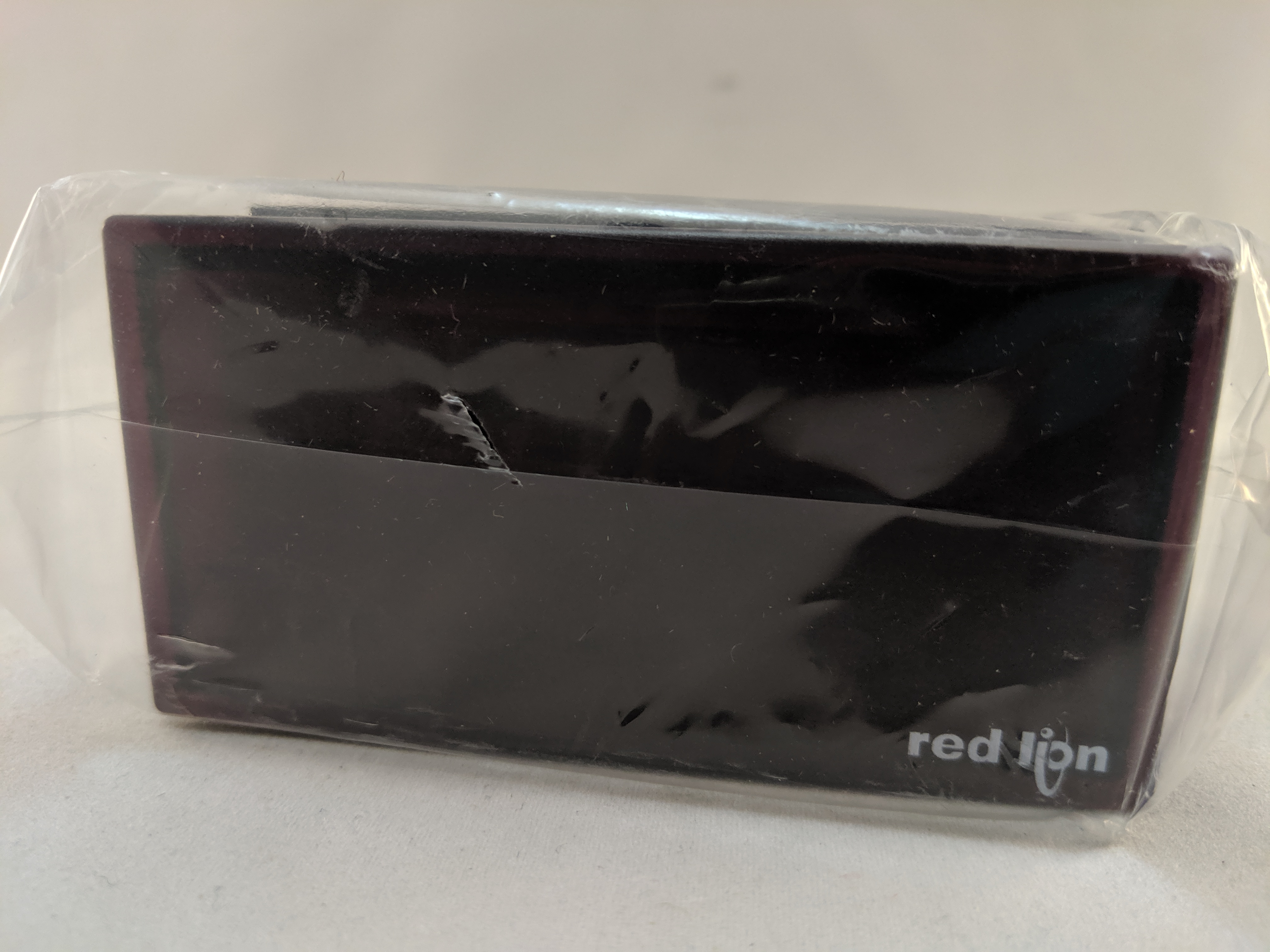

PAX Series PAX® Lite AC Volt Meter
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: PAXLVA00
Weight: 0.65 lb(s)
The PAX® panel meter series offers a wide array of features and consists of PAX Lite, PAX and PAX2. From basic machines, simple process control requirements to the ability to visualize multiple parameters at the same time, the PAX panel meter series is the solution for any application. Additionally, the PAX and PAX2 provide field installable options cards to accommodate changes in application and/or communication requirements.
Features
- AC Voltmeter
- Selctable AC voltage ranges: 0 to 1.999 V, 0 to 19.99 V, 0 to 199.9 V, 0 to 300 V
- 3 1/2 Digit, 0.56" (14.2 mm) LED w/Polarity
- 1/8 DIN (50 mm x 97 mm)
- Built-in Scaling Provisions
- Selectable Decimal Point Location
- Auto Zeroing Circuits
- Over-Range Indication
- NEMA 4X/IP65 Sealed Front Bezel
PAX Series PAX® Lite AC Volt Meter
Brand_Name:Red Lion
Manufacturer Product Family:PAX Series Panel Meters
Power:AC
Measurement Maximum:0
Measurement Minimum:0
Input Communication Protocol:Multiple
Ingress Protection:IP65
Function:AC Voltage Meter
Process Display:3 1/2 Digit, 0.56" (14 mm) Red LED
NEMA / UL:NEMA 4X
SIZE:1/8 DIN
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | PAX Series Panel Meters |
| Power | AC |
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Communication Protocol | Multiple |
| Ingress Protection | IP65 |
| Function | AC Voltage Meter |
| Process Display | 3 1/2 Digit, 0.56" (14 mm) Red LED |
| NEMA / UL | NEMA 4X |
| SIZE | 1/8 DIN |
