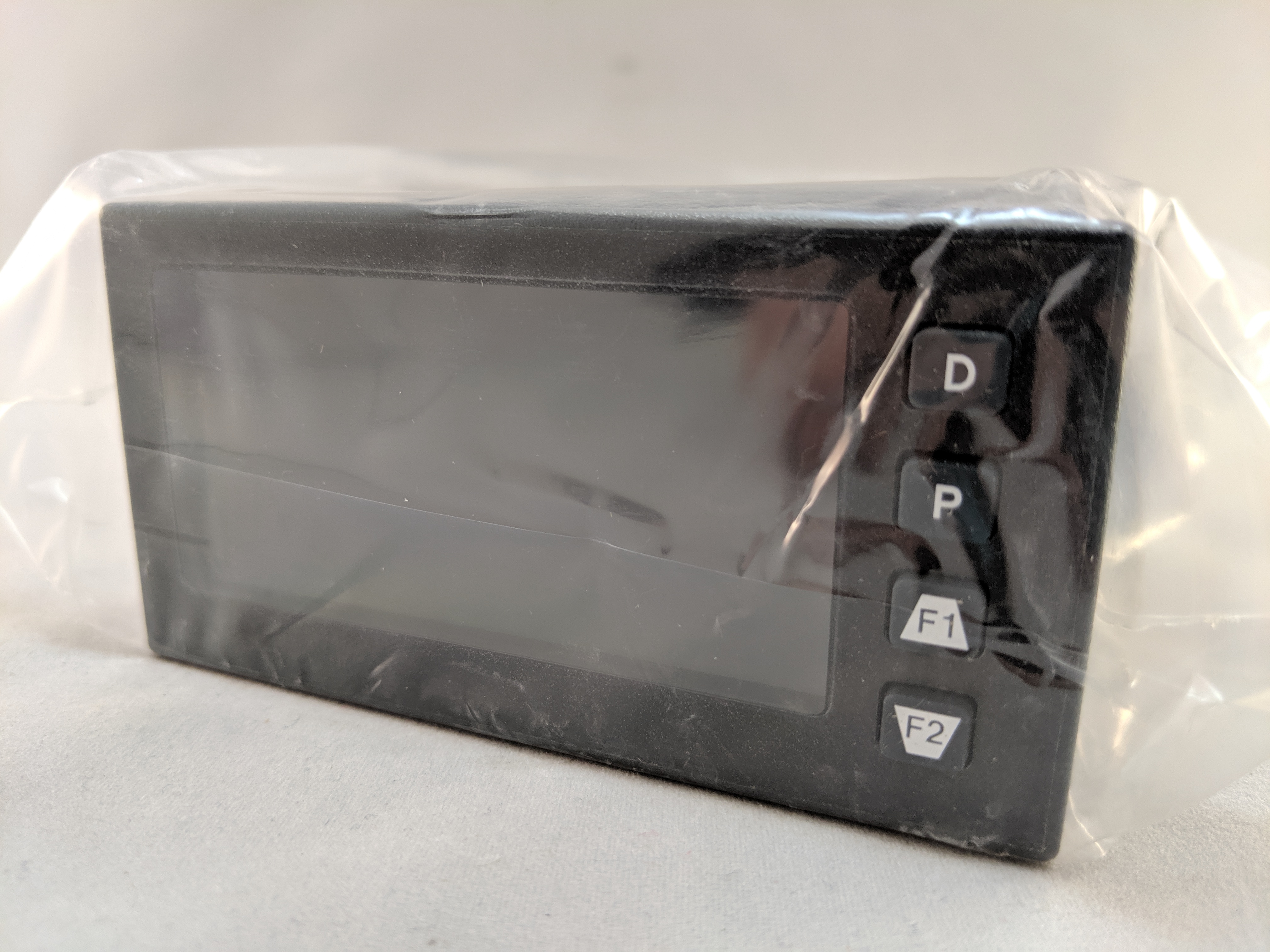

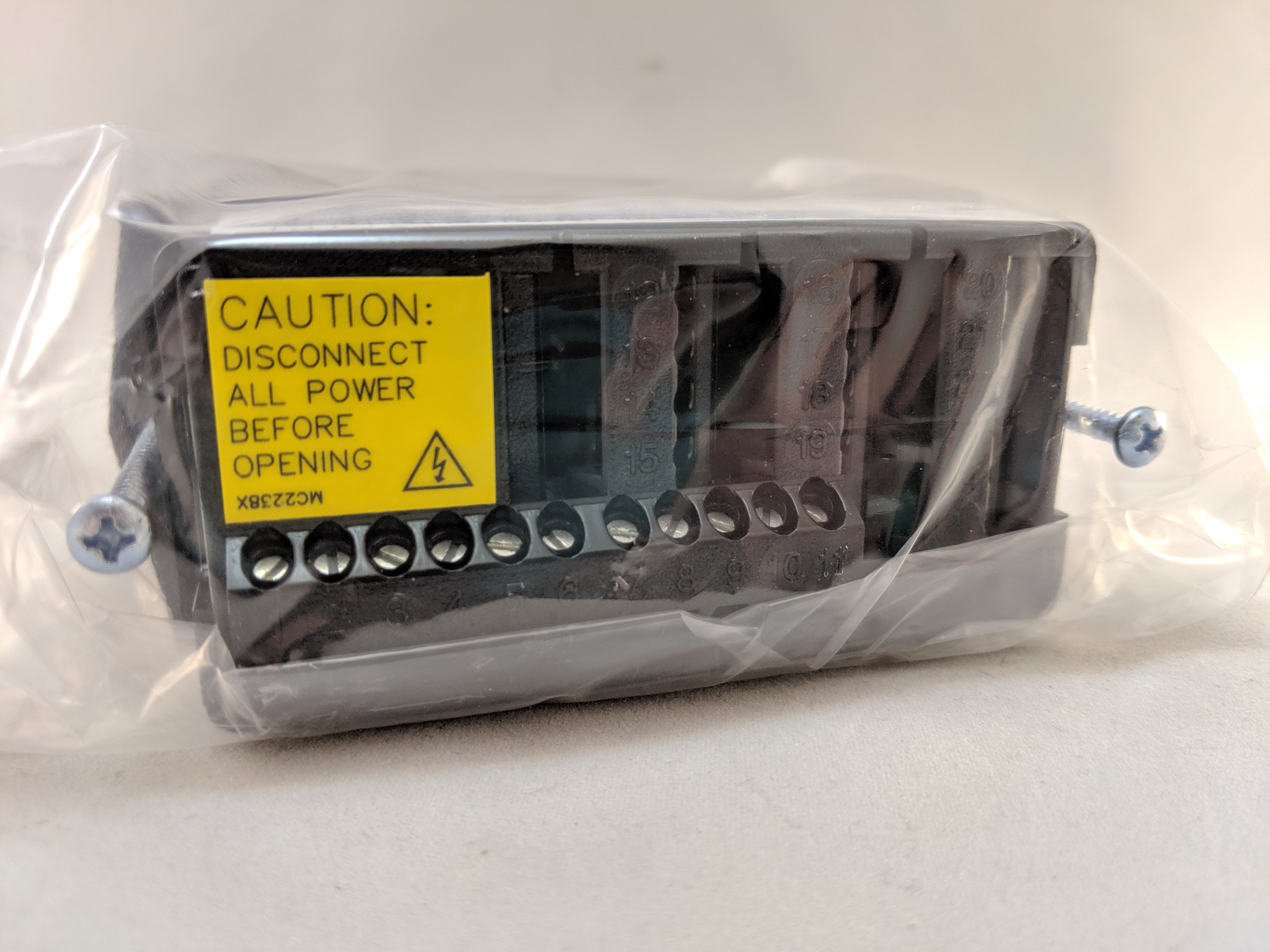

PAX Series PAX2A Universal Analog Input Meter
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: PAX2A000
Weight: 0.5 lb(s)
The PAX® panel meter series offers a wide array of features and consists of PAX Lite, PAX and PAX2. From basic machines, simple process control requirements to the ability to visualize multiple parameters at the same time, the PAX panel meter series is the solution for any application. Additionally, the PAX and PAX2 provide field installable options cards to accommodate changes in application and/or communication requirements.
Features
- Universal Analog Input Meter, DC Current, DC Voltage, Process Signals, Resistance, Thermocouples or RTDs
- Universal Power Supply: 50 to 250 VAC or 21.6 to 250 VDC

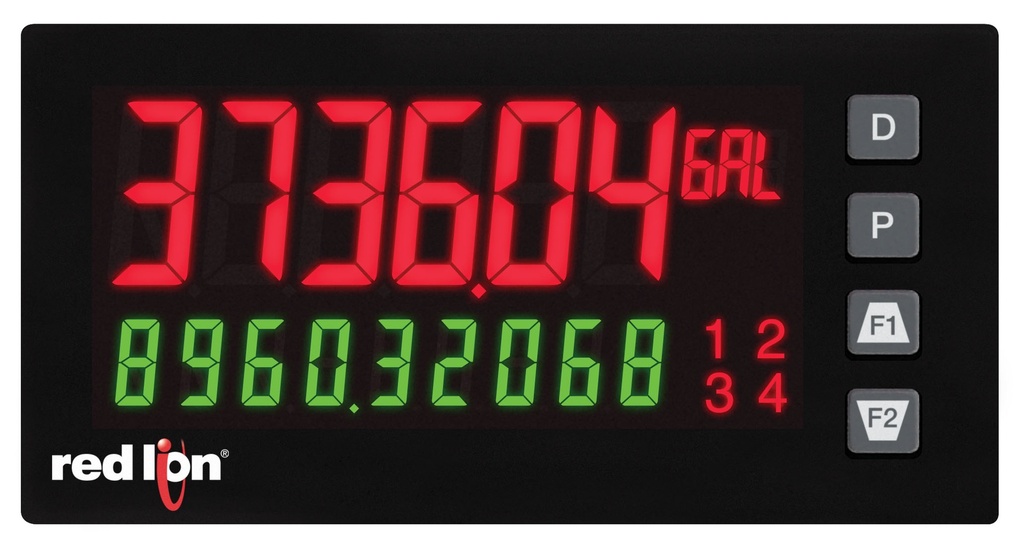

- 6/9 Digit Dual Line/Color Display with 0.7" and 0.35" digits
- Variable Contrast and Intensity Display
- Meter Update Rate up to 160/Second
- Built-in Modbus Communications
- Communications: R232, RS-485, DeviceNet and Profibus (W/Option Card)
- Setpoint and Analog Outputs (W/Option Card)
PAX Series PAX2A Universal Analog Input Meter
Brand_Name:Red Lion
Manufacturer Product Family:PAX Series Panel Meters
Power:AC/DC
Measurement Maximum:0
Measurement Minimum:0
Input Communication Protocol:Multiple
Output Communication Protocol:Multiple
Function:Universal DC Analog Input Meter; DC Current, DC Voltage, Process, RTD, Thermocouple, Resistance
Process Display:Dual Line Display, Top Line - 6 digit, 0.71" (18 mm)Tri-color Display, Bottom Line - 9 digit, 0.35" (8.9 mm)
Feature: Setpoints Capability:Yes
SIZE:1/8 DIN
Feature: Retransmitted Analog:Yes
Feature: Communication Capability:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | PAX Series Panel Meters |
| Power | AC/DC |
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Communication Protocol | Multiple |
| Output Communication Protocol | Multiple |
| Function | Universal DC Analog Input Meter; DC Current, DC Voltage, Process, RTD, Thermocouple, Resistance |
| Process Display | Dual Line Display, Top Line - 6 digit, 0.71" (18 mm)Tri-color Display, Bottom Line - 9 digit, 0.35" (8.9 mm) |
| Feature: Setpoints Capability | Yes |
| SIZE | 1/8 DIN |
| Feature: Retransmitted Analog | Yes |
| Feature: Communication Capability | Yes |
