VACON NXP Series, 380-500 VAC, 3 Phase, NXP02055-A2T0SSV-A1A2A400CP +BM37 Special High speed application 1000 Hz

Manufacturer: Danfoss LLC

Mfg Product Code: NXP02055-A2T0SSV-A1A2A400CP+BM37

Weight: 0.01 lb(s)

Product Group : (NXP) NXP Frequency Converter
Mains voltage : (5-) 380 – 500 Vac (465-800 Vdc)
Current : (0205) 205 Amp
Enclosure : (2) IP21/NEMA1
EMC emission levels : (T) IEC61800-3 for IT networks
Control Keypad : (A) Alpha-numeric display
Brake Chopper : (0) No Brake
Electrical Modification : (S) 6-pulse with choke
Mechanical Modification : (S) Standard air cooled drive
Card Modifications : (V-) DirectConn. w Varnished Boards
Option Slot A : (A1) 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B : (A2) 2RO(NO/NC)
Option Slot C : (A4) 3DI (Enc.RS422), +5V/+15V
Option Slot D : (00) No board
Option Slot E : (CP) PROFINET
Gland Plate Option : (+QGLC) Inch conduit plate
Motor Parameter Default : (+LS50) Default Motor frequency 50HZ
Firmware language package : (+FL21) UK,FI,SE,DK,DE;Nordic
Application : (+APFIFF41) Advanced High Speed NXP,NXI
Documentation Level : (+DQCK) Quick guide user manual
Documentation Lang. Preference : (+DLUK) English
UL Approval : (+GAUL) UL approval
CE Approval : (+GACE) CE Approval
RCM Approval : (+GACT) RCM Approval N16307
KC Approval : (+GAKC) Korean Approval
Motor Power High Overload [kW] : 90
Continuous Current (HO) [A] : 170
Motor Power Low Overload [kW] : 110
Continuous Current (NO) [A] : 205
Dimensions WxHxD [mm] : 288X758X344
Frame Size : FR08
Calculated Net Weight [kg] : 58

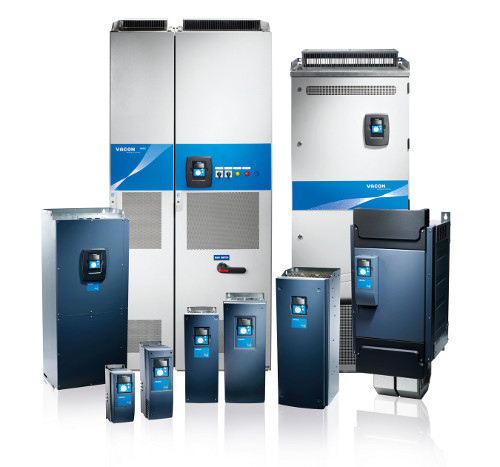

The VACON NX family of air-cooled and liquid-cooled drives is designed for a broad range of demanding industrial applications. It comprises wall-mounted, enclosed and system drives in the power range 0.55 kW-5.3 MW.

Liquid-cooled variants are well-suited to applications where air quality is critical, space is limited, and highly efficient heat transfer is required.

VACON NX drives deliver maximum motor control performance and dynamics for both single-shaft machines and drive systems. Configurable I/O and fieldbuses cater for any connectivity need. You can customize drive functions to obtain cost savings and deeper machine integration.
