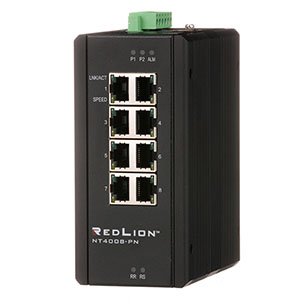

NT-4008 Series, 8-Port Gigabit Managed Industrial Ethernet Switch (8 10/100/1000BaseT RJ45 ports), PNIO CC-B, MRM
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: NT-4008-000-PN-M
Weight: 2.0 lb(s)
Red Lion's NT4008 8-port Gigabit Managed Industrial Ethernet switches are certified to meet PROFINET PNIO v2.34 conformance class B (CC-B), RT Class 1 standards to ensure seamless integration into PROFINET networks using standard PLC configuration and management tools.
Features
Red Lion's NT4008 8-port Gigabit Managed Industrial Ethernet switches are certified to meet PROFINET PNIO v2.34 conformance class B (CC-B), RT Class 1 standards to ensure seamless integration into PROFINET networks using standard PLC configuration and management tools.
8- Port Gigabit Layer 3 Managed Industrial Ethernet Switch Eight 10/100/1000 RJ45 ports -40 to 75°C Operating Temperature Auto Sensing 10/100/1000BaseTX, Duplex and MDIX Store-and-forward Technology 12-58 VDC Dual Power Inputs 4k MAC Addresses 9k byte Jumbo Frame Support Configurable Alarm Contact Rugged Industrial IP30 Rackmount Enclosure
MANAGEMENT
Web Browser Management CLI: Console, Telnet RMON (Monitors L1 to L2 Traffic) sFlow Configuration backup/restore PROFINET GSDML file, PROFINET I/O parameters, I/O cyclic data MRP Client/Manager DHCP Server/Client/Relay Agent DHCP Snooping IGMP v1, v2, v3 SNMP v1, v2c, v3
DIAGNOSTIC
Port Mirroring Syslog LLDP IEEE 802.1ab Link Layer Discovery Protocol
NETWORK REDUNDANCY
PROFINET MRP Ring Protocol: Proprietary Ring & Chain, < 20ms recovery IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s, 802.1Q MSTP LACP/LAG: Static and Dynamic Link Aggregation Up to 4 groups per switch Up to 8 ports per group
TRAFFIC MANAGEMENT & QOS
Priority: IEEE 802.1p QoS Number of queues per port: 8 Policing, scheduling, and shaping QoS classification, remarking and translation QoS assignment via Control Lists WRED congestion management
VLANS
Max VLANS: 1024 VLAN types: Port-based VLANs IEEE 802.1Q Tag based VLANs IEEE 802.1ad double tagging (Q in Q)
SECURITY
SSH, SSL, HTTPS SNMP v3 Port Security: IP and MAC-based access control Storm Control: Multicast/Broadcast/Flooding Policy-based access control engine: 128 ACL rules per system
NT-4008 Series, 8-Port Gigabit Managed Industrial Ethernet Switch (8 10/100/1000BaseT RJ45 ports), PNIO CC-B, MRM
Brand_Name:Red Lion
Manufacturer Product Family:NT-4008 Series Managed Ethernet Switches
Mounting Options:DIN Rail
Case Material:PM Metal
Input Voltage:12-58 VDC
Ingress Protection:IP30
No. Ports:8
10/100/1000 Ports:8
10/100/1000 Copper Ports:8
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | NT-4008 Series Managed Ethernet Switches |
| Mounting Options | DIN Rail |
| Case Material | PM Metal |
| Input Voltage | 12-58 VDC |
| Ingress Protection | IP30 |
| No. Ports | 8 |
| 10/100/1000 Ports | 8 |
| 10/100/1000 Copper Ports | 8 |
