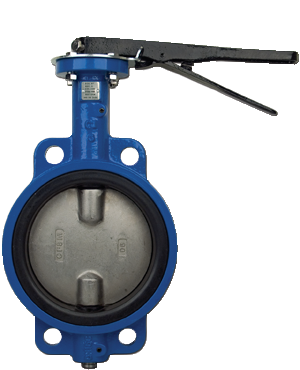

Representative photo. Please check item description for details.
N500N / N500S Butterfly Valve Series NSF Approved Rubber-Lined Wafer-Style Butterfly Valve w/ Nylon-coated SS Disc
Manufacturer: Bonomi North America Inc
Mfg Product Code:
On Hand: 0
N500N / N500S Butterfly Valve Series manually operated Wafer butterfly valves.
Features
- Pressure rating: 250 psi water (40°F to 80°F).
- Epoxy coated cast iron wafer body.
- ISO 5211 direct mounting pad/square stem.
- Food grade EPDM resilient seat -30°F to 250°F.
- API609 face to face flange.
- Floating dual shaft disc design.
- MSS SP 67 compliant.
- No pins in disc prevent potential leak points.
- NSF certified for drinking water service (EPDM seats only).
Model Details
- N500N: size 2" to 12".
- N500S: size 1 1/2" to 12".
- 530S: VITON® SEATS - size 2" to 12".
- 540S: BUNA-N SEATS - size 2" to 12".
N500N / N500S Butterfly Valve Series NSF Approved Rubber-Lined Wafer-Style Butterfly Valve w/ Nylon-coated SS Disc
Specifications
| Model | [N500N] Nylon-coated SS Disc or [N500S] SS Disc |
| Valve Size | 2" or 2-1/2" or 3" or 4" or 8" or 10" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 5" or 6" or 8" or 10" or 12" |
