Barksdale Temp SW SPDT 50/250F Single Set Point

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: MT1H-H251S

Weight: 0.01 lb(s)

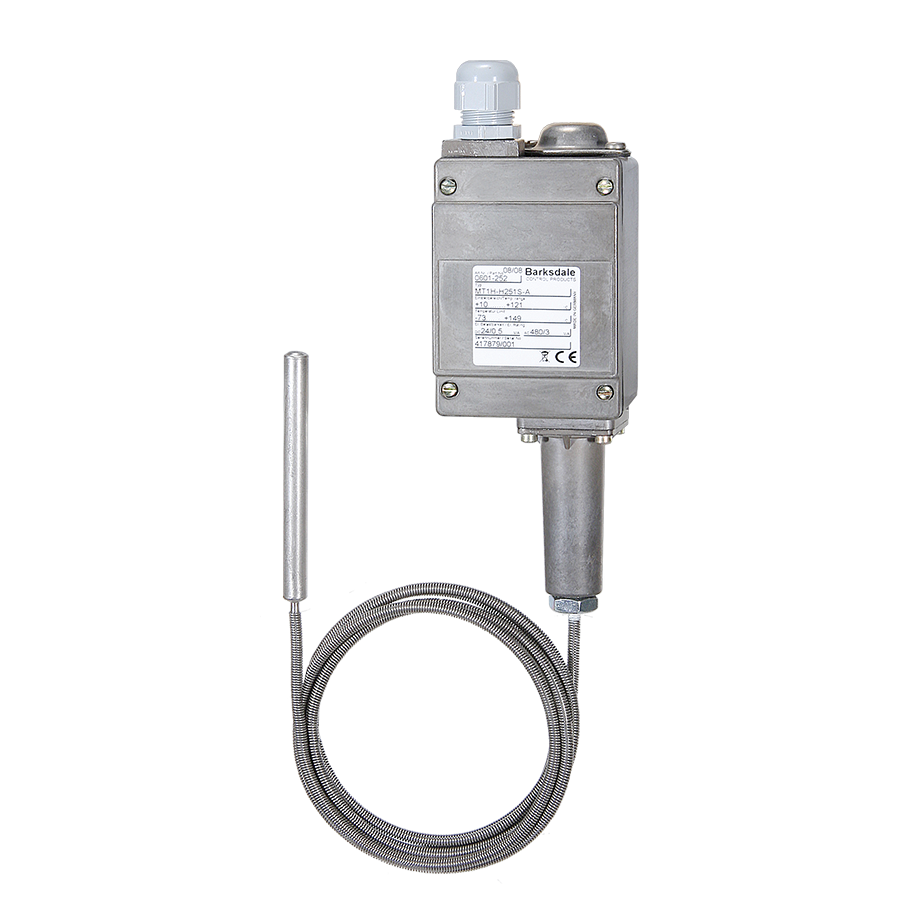

The MT1H is a robust and reliable single mechanical temperature switch designed for demanding applications in hazardous locations. This switch features a remote sensor and an explosion-proof housing, ensuring safe and accurate temperature monitoring.

Key Features:

• Explosion-Proof Housing: Provides a safe and reliable solution for hazardous environments.
• Remote Sensor: Allows for flexible installation and monitoring of temperatures in hard-to-reach locations.
• Easy Configuration: Terminal clip and set point adjustment in °C and °F are easily accessible under a tamper-protected cover.
• Enhanced Safety:
  • Protection class: IP65, NEMA 4 / 13.
  • Optional disconnection with manual reset (G-microswitch).
  • Adjustable hysteresis (dead band) for improved accuracy and reduced cycling (S-microswitch).
• Comprehensive Approvals: Ex ia, UL, and CSA certified for global use.
• Suitable for SIL2: Compliant with IEC 61508 for safety-critical applications.

Applications:

• Machine Tool Industry: Monitor critical temperatures in machining processes.
• Shipbuilding: Monitor engine room temperatures and other vital systems.
• Railcars: Monitor critical components for safety and reliability.
• Power Plants: Monitor equipment temperatures for efficient and safe operation.
• Antifreeze Systems: Monitor coolant temperatures to prevent freezing.
• Heating Systems: Monitor temperatures for optimal system performance.
• Compressor Monitoring: Monitor compressor temperatures to prevent overheating.

The MT1H offers reliable temperature monitoring in demanding environments. Contact us today to learn more.
