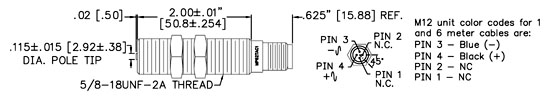

MP Series, MP62TA - 5/8" Threaded Magnetic Pickup, M12 Connector
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: MP62TAC1
Weight: 0.15 lb(s)
MAGNETIC PICKUP 50 RPM THRESHOLD 5/8" THREAD
A Magnetic Pickup consists of a permanent magnet, a pole-piece, and a sensing coil encapsulated in a cylindrical case. An object (target) of iron, steel, or other magnetic material, passing closely by the pole-piece causes distortion of the magnetic flux field, which in turn generates a signal voltage. The magnitude of the signal voltage depends on the relative size and magnetism of the target, its speed of approach, and how close it passes the pole-piece.
Features
- 5/8" Threaded Magnetic Pickup with M12 Connector
- Self-Generating, No External Power Required
- Epoxy Encapsulated, Impervious to Dirt, Oil, & Moisture
- Wide Operating Temperature
- In-Line Preamplifier (Signal Booster) - Optional
MP Series, MP62TA - 5/8" Threaded Magnetic Pickup, M12 Connector
MAGNETIC PICKUP 50 RPM THRESHOLD 5/8" THREAD
Brand_Name:Red Lion
Manufacturer Product Family:MP Series Generaly Duty Magnetic Pick-Ups
Measurement Maximum:0
Process Connection Type:Threaded
Process Connection Size:5/8"
Measurement Minimum:0
Connector 1 Type:M12
Min Gear Pitch:24 D.P.
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | MP Series Generaly Duty Magnetic Pick-Ups |
| Measurement Maximum | 0 |
| Process Connection Type | Threaded |
| Process Connection Size | 5/8" |
| Measurement Minimum | 0 |
| Connector 1 Type | M12 |
| Min Gear Pitch | 24 D.P. |
