Shimpo Magnetic Sensor

Manufacturer: Seals USA Inc aka Nidec Shimpo

Mfg Product Code: MP-10

Weight: 5.0 lb(s)

Magnetic Sensor

MP-10 Magnetic Pick-Up Sensor provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time.

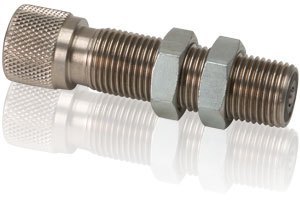

The unit will mount in a 5/8” thread hole and is provided with 2 jam nuts to secure the sensor.

Features

• Sine wave output from change in magnetic to non-magnetic
• Change in voltage proportional to magnetic flux intensity over time
• Range of 0.01″ (0.25 mm) typical clearance
• 10′ (3 m) cable
