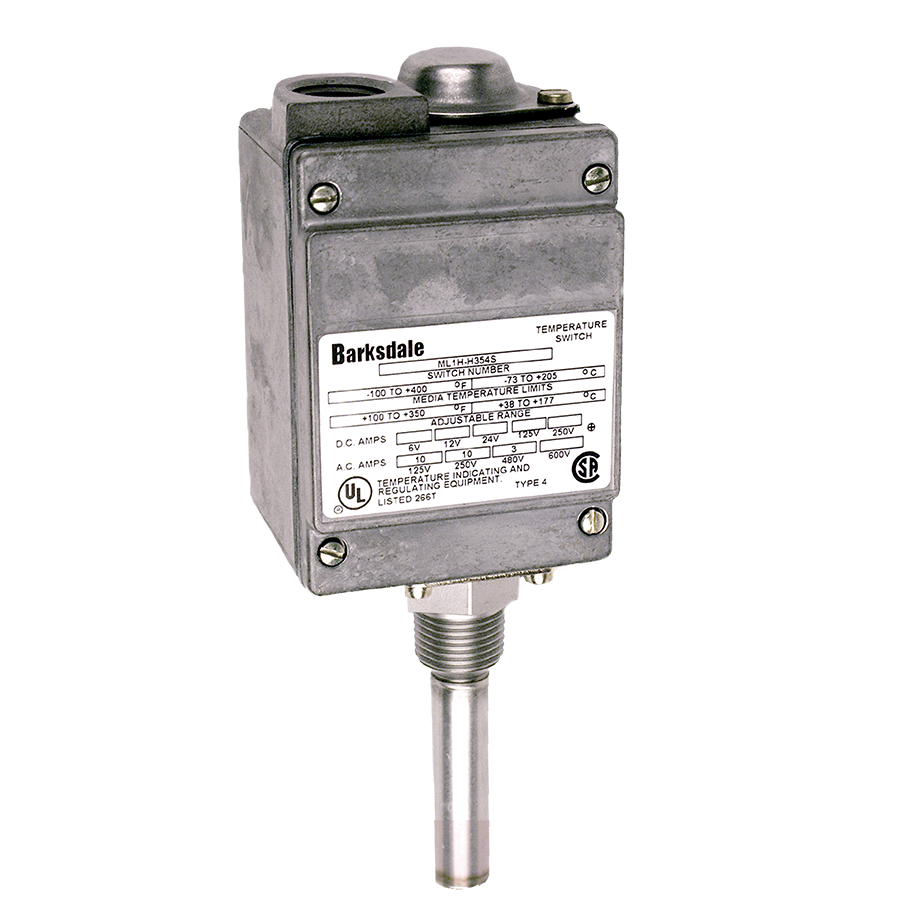

Barksdale ML1H Local Mount Temp Switch, Single Setpoint, NEMA 4 & IP65, 10 Amp @ 125, 250 VAC & 3 Amp @ 480 VDC, 150 to 450 °F, 304 SS Sensor

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: ML1H-S454S

Weight: 1.0 lb(s)

Sized for single switch models
Single setpoint (SPDT)
NEMA 4 & IP65
15 amps @ 125/250/480 VAC, adjustable differential
150F to 450F
304 SS sensor

Barksdale's ML1H (single setpoint) and L2H (dual setpoint) Series Temperature Switches provide reliable and accurate temperature control for demanding applications. These locally mounted switches ensure fast response and precise measurements directly at the temperature source.

Key Features:

• High Accuracy:
  • Precise temperature control from -50° to 450°F (-45° to 232°C).
  • +/- 1% Repeatability for consistent performance.
• Rugged Construction:
  • NEMA 4 & 13 rated enclosures for enhanced protection.
  • Optional NEMA 4X construction for corrosive environments.
  • Durable die-cast aluminum housing.
• Versatile Applications:
  • Single or dual switching options to meet diverse application needs.
  • Copper or stainless steel sensors for compatibility with various media.
  • Optional thermowells allow for use in pressurized vessels up to 5000 psi.
• Easy Installation:
  • Standard 3- & 6-pin terminal strips simplify wiring.
• Global Approvals: UL, CSA, and CE certified for global use.

Applications:

• Oil & gas
• Mining
• Tanks and reservoirs
• Compressors
• Plastic machinery
• Factory automation
• Process equipment
• Machine tools and industrial equipment
