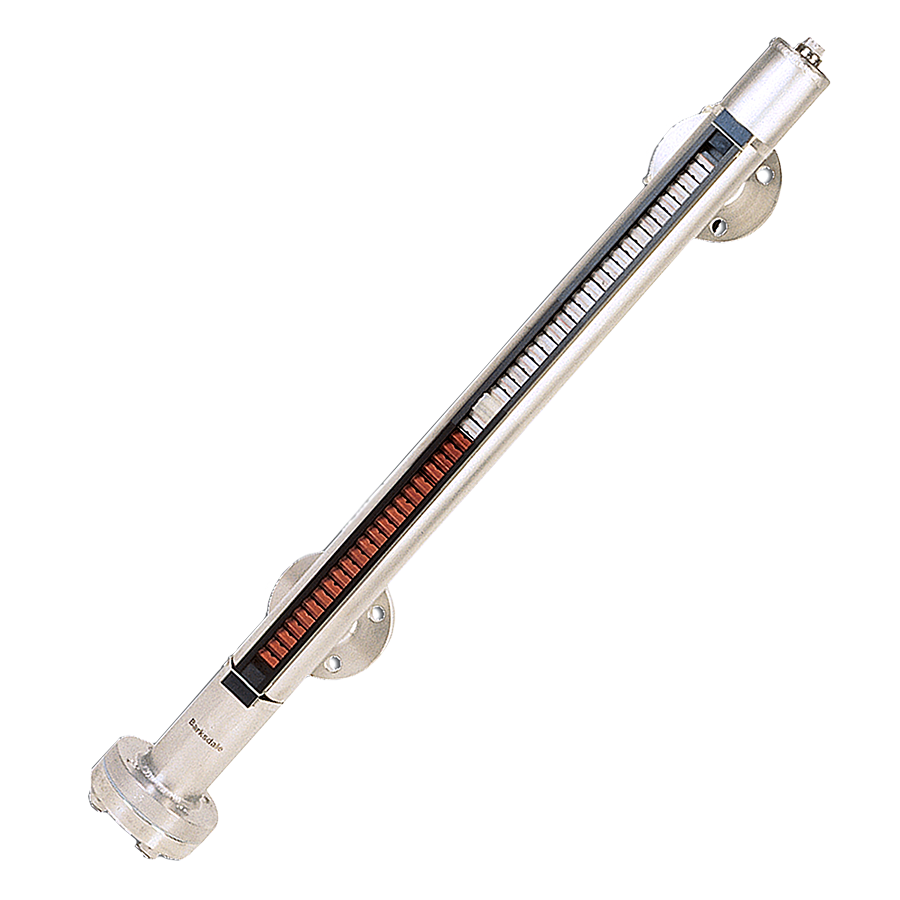

Barksdale Alloy LevelSite, Top/Bottom Process Conn., 1" NPTF, Titanium Float, Polycarbonate Flag Assembly (302 °F), Calibrated Self-Adhesive Scale (cm)

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: LTBMN08GF82.31L-SK

Weight: 1.0 lb(s)

Bypass tube:
Float:
Standard:
Option:
Proof pressure:
Process connections:
Option:
Stainless steel 1.4571 (SS 316 Ti)
PN 40, Ø = 60.3 x 2 mm
TT 50/10 in Titanium,
min. density: 0.56 g/cm³
max. temperature: 320 °C media
dependent
TT 50/15 in titanium, with M4 plug
min. density: 0.57 g/cm³
max. temperature: 320 °C media
dependent
1.5 x operating pressure
BNA-S41
top and bottom connections:
top G½, bottom service flange ½“
BNA-S42
side connections:
threaded R ½", R ¾", 1", or flanges
in:
DIN DN 15, 20, 25, 32, 40, 50 or
ANSI ½", ¾",
1", 1 ½", 2", NPT: ½", ¾", 1"
Instead of G½, top and bottom ½"
NPT or
flange connections with weld neck
flanges.
Indication rail:
Standard:
Option:
Accessories:
Makrolon (polycarbonate) clear,
with white/red
indication flags ,
up to 150 °C media dependent
Aluminium, black anodized,
flags painted silver/red,

The BDS3000 with IO-Link is a powerful electronic differential pressure switch designed for demanding filtration and industrial applications. Combining Barksdale's expertise in pressure sensing with the advanced capabilities of IO-Link, this switch delivers precise control and seamless integration into Industry 4.0 environments.

Key Features:

• High Performance:
  • Measures differential pressure up to 500 psid with a maximum common pressure of 2,500 psi.
  • 0.50% accuracy for reliable and precise measurements.
  • Two switch points for versatile control applications.
• Flexible Configuration:
  • Analog output options: 4-20mA or 0-10V.
  • Adjustable full-scale output as low as 25% of FSO for enhanced flexibility.
• User-Friendly Interface:
  • Large, easy-to-read 14-segment LED display with 320° rotation for optimal visibility.
  • Simple navigation menu for intuitive operation.
• Rugged Construction:
  • IP67 rated enclosure for protection against harsh environments, including submersion.
  • Superior EMI protection for reliable operation in challenging electrical environments.

• The Alloy LevelSite® Level Indicator offers a safe and reliable solution for accurate level measurement in challenging industrial environments.

  Key Features:

  • Enhanced Safety:
    • Accident-proof design with complete isolation of process media from instrumentation.
    • Eliminates the risk of leaks and spills associated with traditional sight glasses.
  • Rugged Construction:
    • Constructed from durable, welded stainless steel for long-lasting performance in demanding applications.
  • Low Maintenance:
    • Maintenance-free operation – no need to remove from service for cleaning.
  • Easy Readability:
    • Large, easily visible flags can be viewed from distances exceeding 100 feet.
  • Flexible Design:
    • Available in continuous lengths up to 20 feet or multiple lengths up to 65 feet to suit various application requirements.

  Applications:

  • Lube oil console systems
  • Hot water/condensate steam systems
  • Industrial refrigeration
  • Storage tanks
  • Solvent recovery systems
  • Marine applications
  • Scrubbers
  • Semi-conductor industry

  The Alloy LevelSite® Level Indicator provides accurate, safe, and reliable level measurement for a wide range of industrial applications.

  Advanced Connectivity:
  • Integrated IO-Link communication for seamless integration into Industry 4.0 systems.

Applications:

• Filtration Systems: Monitor and control filter performance in various industrial applications.
• Machine Tool Industry: Optimize machine tool performance and reduce downtime.
• Factory Automation: Integrate seamlessly into automated production lines for enhanced efficiency.
• Lubrication Monitoring: Ensure proper lubrication of critical components.
• Pumps and Compressors: Monitor and control pressure within pump and compressor systems.

Barksdale BDS3000 with IO-Link: Experience intelligent differential pressure control with enhanced connectivity and unparalleled performance.
