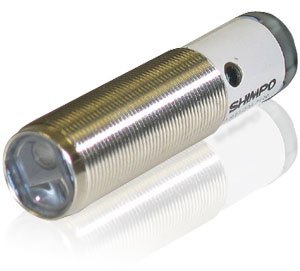

Shimpo Diffused Laser Sensor, NPN or PNP Outputs

Manufacturer: Seals USA Inc aka Nidec Shimpo

Mfg Product Code: LS-S50MLR

Weight: 5.0 lb(s)

Diffused Laser Sensor, NPN or PNP Outputs

LS-S50MLR and LS-S50MLR-DT311 Laser Sensor-Color Contrast

LS-S50ML is a laser sensor that can be taught to recognize difference in colors. It is a class 1 red laser with switching frequency of 1.5 KHZ. Contained in a metal housing with 6 ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers. It includes a trimmer potentiometer that is located on the side for minimum and optimum sensitivity adjustments. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power.

Features

• Laser sensor with NPN / PNP (NO, NC) outputs
• 1.5 kHz frequency
• LED indication
• 6′ (1.8 m) with quick disconnect connection
• NEMA 6 (IP67) rating
