  2. LS-700 Multi-Point Level Switch
Public Pricelist (v2)
Representative photo. Please check item description for details.

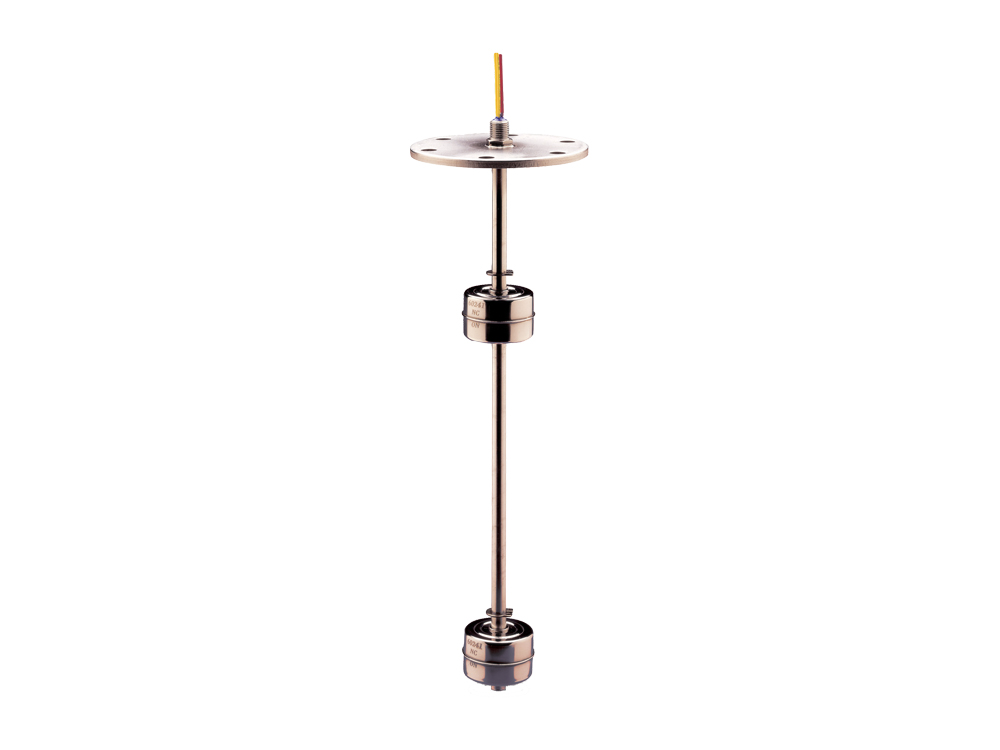

LS-700 Multi-Point Level Switch

https://www.branom.com/web/image/product.template/536613/image_1920?unique=b445f6f
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: LS-700-1-BR-GR1-BN-SPST-020

Weight: 0.01 lb(s)

On Hand: 0

Reset Form Options

$ 175.24 175.24 USD $ 175.24

$ 175.24

Not Available For Sale

  • Media Specific Gravity
  • Select Range for Max Pressure
  • Specify Exact Max Pressure
  • Select Range for Operating Temp
  • Specify Exact Operating Temp
  • Media
  • Mounting Type
  • Stem Material
  • Float Material
  • Switch Type
  • Float Type
  • Electrical Connection
  • Lead Wire Length
  • Wiring Group
  • Number of Levels
  • (LO) Length Overall in Inches
  • L1 (in)
  • L2 (in)
  • L3 (in)
  • L4 (in)
  • Float Stops
  • Optional Bent Stem
  • Optional Grooved Stem
  • Optional Ceramic Potting
  • Optional Bottom Mounted
  • Stainless Steel Tag

This combination does not exist.

Contact Us

LS-700 Multi-Point Level Switch

  • Media Specific Gravity
  • Select Range for Max Pressure
  • Specify Exact Max Pressure
  • Select Range for Operating Temp
  • Specify Exact Operating Temp
  • Media
  • Mounting Type
  • Stem Material
  • Float Material
  • Switch Type
  • Float Type
  • Electrical Connection
  • Lead Wire Length
  • Wiring Group
  • Number of Levels
  • (LO) Length Overall in Inches
  • L1 (in)
  • L2 (in)
  • L3 (in)
  • L4 (in)
  • Float Stops
  • Optional Bent Stem
  • Optional Grooved Stem
  • Optional Ceramic Potting
  • Optional Bottom Mounted
  • Stainless Steel Tag

$ 175.24 175.24 USD $ 175.24

$ 175.24

Not Available For Sale

This combination does not exist.

Specifications

Media Specific Gravity 1.0 or 0.5 or 0.6 or 0.7 or 0.8 or 0.9 or 1.1 or 1.2 or 1.3 or 1.4 or 1.5 or 1.6 or 1.7 or 1.8
Select Range for Max Pressure -4 to 49 psi or 50 to 100 psi or 101 to 150 psi or 151 to 275 psi or 276 to 300 psi
Specify Exact Max Pressure - Select - or -4 psi or -3 psi or -2 psi or -1 psi or 0 psi or 1 psi or 2 psi or 3 psi or 4 psi or 5 psi or 6 psi or 7 psi or 8 psi or 9 psi or 10 psi or 11 psi or 12 psi or 13 psi or 14 psi or 15 psi or 16 psi or 17 psi or 18 psi or 19 psi or 20 psi or 21 psi or 22 psi or 23 psi or 24 psi or 25 psi or 26 psi or 27 psi or 28 psi or 29 psi or 30 psi or 31 psi or 32 psi or 33 psi or 34 psi or 35 psi or 36 psi or 37 psi or 38 psi or 39 psi or 40 psi or 41 psi or 42 psi or 43 psi or 44 psi or 45 psi or 46 psi or 47 psi or 48 psi or 49 psi or 50 psi or 51 psi or 52 psi or 53 psi or 54 psi or 55 psi or 56 psi or 57 psi or 58 psi or 59 psi or 60 psi or 61 psi or 62 psi or 63 psi or 64 psi or 65 psi or 66 psi or 67 psi or 68 psi or 69 psi or 70 psi or 71 psi or 72 psi or 73 psi or 74 psi or 75 psi or 76 psi or 77 psi or 78 psi or 79 psi or 80 psi or 81 psi or 82 psi or 83 psi or 84 psi or 85 psi or 86 psi or 87 psi or 88 psi or 89 psi or 90 psi or 91 psi or 92 psi or 93 psi or 94 psi or 95 psi or 96 psi or 97 psi or 98 psi or 99 psi or 100 psi or 101 psi or 102 psi or 103 psi or 104 psi or 105 psi or 106 psi or 107 psi or 108 psi or 109 psi or 110 psi or 111 psi or 112 psi or 113 psi or 114 psi or 115 psi or 116 psi or 117 psi or 118 psi or 119 psi or 120 psi or 121 psi or 122 psi or 123 psi or 124 psi or 125 psi or 126 psi or 127 psi or 128 psi or 129 psi or 130 psi or 131 psi or 132 psi or 133 psi or 134 psi or 135 psi or 136 psi or 137 psi or 138 psi or 139 psi or 140 psi or 141 psi or 142 psi or 143 psi or 144 psi or 145 psi or 146 psi or 147 psi or 148 psi or 149 psi or 150 psi or 151 psi or 152 psi or 153 psi or 154 psi or 155 psi or 156 psi or 157 psi or 158 psi or 159 psi or 160 psi or 161 psi or 162 psi or 163 psi or 164 psi or 165 psi or 166 psi or 167 psi or 168 psi or 169 psi or 170 psi or 171 psi or 172 psi or 173 psi or 174 psi or 175 psi or 176 psi or 177 psi or 178 psi or 179 psi or 180 psi or 181 psi or 182 psi or 183 psi or 184 psi or 185 psi or 186 psi or 187 psi or 188 psi or 189 psi or 190 psi or 191 psi or 192 psi or 193 psi or 194 psi or 195 psi or 196 psi or 197 psi or 198 psi or 199 psi or 200 psi or 201 psi or 202 psi or 203 psi or 204 psi or 205 psi or 206 psi or 207 psi or 208 psi or 209 psi or 210 psi or 211 psi or 212 psi or 213 psi or 214 psi or 215 psi or 216 psi or 217 psi or 218 psi or 219 psi or 220 psi or 221 psi or 222 psi or 223 psi or 224 psi or 225 psi or 226 psi or 227 psi or 228 psi or 229 psi or 230 psi or 231 psi or 232 psi or 233 psi or 234 psi or 235 psi or 236 psi or 237 psi or 238 psi or 239 psi or 240 psi or 241 psi or 242 psi or 243 psi or 244 psi or 245 psi or 246 psi or 247 psi or 248 psi or 249 psi or 250 psi or 251 psi or 252 psi or 253 psi or 254 psi or 255 psi or 256 psi or 257 psi or 258 psi or 259 psi or 260 psi or 261 psi or 262 psi or 263 psi or 264 psi or 265 psi or 266 psi or 267 psi or 268 psi or 269 psi or 270 psi or 271 psi or 272 psi or 273 psi or 274 psi or 275 psi or 276 psi or 277 psi or 278 psi or 279 psi or 280 psi or 281 psi or 282 psi or 283 psi or 284 psi or 285 psi or 286 psi or 287 psi or 288 psi or 289 psi or 290 psi or 291 psi or 292 psi or 293 psi or 294 psi or 295 psi or 296 psi or 297 psi or 298 psi or 299 psi or 300 psi
Select Range for Operating Temp 0° F - 225° F or 226° F - 300° F
Specify Exact Operating Temp - Select - or 0 °F or 1 °F or 2 °F or 3 °F or 4 °F or 5 °F or 6 °F or 7 °F or 8 °F or 9 °F or 10 °F or 11 °F or 12 °F or 13 °F or 14 °F or 15 °F or 16 °F or 17 °F or 18 °F or 19 °F or 20 °F or 21 °F or 22 °F or 23 °F or 24 °F or 25 °F or 26 °F or 27 °F or 28 °F or 29 °F or 30 °F or 31 °F or 32 °F or 33 °F or 34 °F or 35 °F or 36 °F or 37 °F or 38 °F or 39 °F or 40 °F or 41 °F or 42 °F or 43 °F or 44 °F or 45 °F or 46 °F or 47 °F or 48 °F or 49 °F or 50 °F or 51 °F or 52 °F or 53 °F or 54 °F or 55 °F or 56 °F or 57 °F or 58 °F or 59 °F or 60 °F or 61 °F or 62 °F or 63 °F or 64 °F or 65 °F or 66 °F or 67 °F or 68 °F or 69 °F or 70 °F or 71 °F or 72 °F or 73 °F or 74 °F or 75 °F or 76 °F or 77 °F or 78 °F or 79 °F or 80 °F or 81 °F or 82 °F or 83 °F or 84 °F or 85 °F or 86 °F or 87 °F or 88 °F or 89 °F or 90 °F or 91 °F or 92 °F or 93 °F or 94 °F or 95 °F or 96 °F or 97 °F or 98 °F or 99 °F or 100 °F or 101 °F or 102 °F or 103 °F or 104 °F or 105 °F or 106 °F or 107 °F or 108 °F or 109 °F or 110 °F or 111 °F or 112 °F or 113 °F or 114 °F or 115 °F or 116 °F or 117 °F or 118 °F or 119 °F or 120 °F or 121 °F or 122 °F or 123 °F or 124 °F or 125 °F or 126 °F or 127 °F or 128 °F or 129 °F or 130 °F or 131 °F or 132 °F or 133 °F or 134 °F or 135 °F or 136 °F or 137 °F or 138 °F or 139 °F or 140 °F or 141 °F or 142 °F or 143 °F or 144 °F or 145 °F or 146 °F or 147 °F or 148 °F or 149 °F or 150 °F or 151 °F or 152 °F or 153 °F or 154 °F or 155 °F or 156 °F or 157 °F or 158 °F or 159 °F or 160 °F or 161 °F or 162 °F or 163 °F or 164 °F or 165 °F or 166 °F or 167 °F or 168 °F or 169 °F or 170 °F or 171 °F or 172 °F or 173 °F or 174 °F or 175 °F or 176 °F or 177 °F or 178 °F or 179 °F or 180 °F or 181 °F or 182 °F or 183 °F or 184 °F or 185 °F or 186 °F or 187 °F or 188 °F or 189 °F or 190 °F or 191 °F or 192 °F or 193 °F or 194 °F or 195 °F or 196 °F or 197 °F or 198 °F or 199 °F or 200 °F or 201 °F or 202 °F or 203 °F or 204 °F or 205 °F or 206 °F or 207 °F or 208 °F or 209 °F or 210 °F or 211 °F or 212 °F or 213 °F or 214 °F or 215 °F or 216 °F or 217 °F or 218 °F or 219 °F or 220 °F or 221 °F or 222 °F or 223 °F or 224 °F or 225 °F or 226 °F or 227 °F or 228 °F or 229 °F or 230 °F or 231 °F or 232 °F or 233 °F or 234 °F or 235 °F or 236 °F or 237 °F or 238 °F or 239 °F or 240 °F or 241 °F or 242 °F or 243 °F or 244 °F or 245 °F or 246 °F or 247 °F or 248 °F or 249 °F or 250 °F or 251 °F or 252 °F or 253 °F or 254 °F or 255 °F or 256 °F or 257 °F or 258 °F or 259 °F or 260 °F or 261 °F or 262 °F or 263 °F or 264 °F or 265 °F or 266 °F or 267 °F or 268 °F or 269 °F or 270 °F or 271 °F or 272 °F or 273 °F or 274 °F or 275 °F or 276 °F or 277 °F or 278 °F or 279 °F or 280 °F or 281 °F or 282 °F or 283 °F or 284 °F or 285 °F or 286 °F or 287 °F or 288 °F or 289 °F or 290 °F or 291 °F or 292 °F or 293 °F or 294 °F or 295 °F or 296 °F or 297 °F or 298 °F or 299 °F or 300 °F
Media Water (<225° F) or Water (>226° F) or Other (Specify)

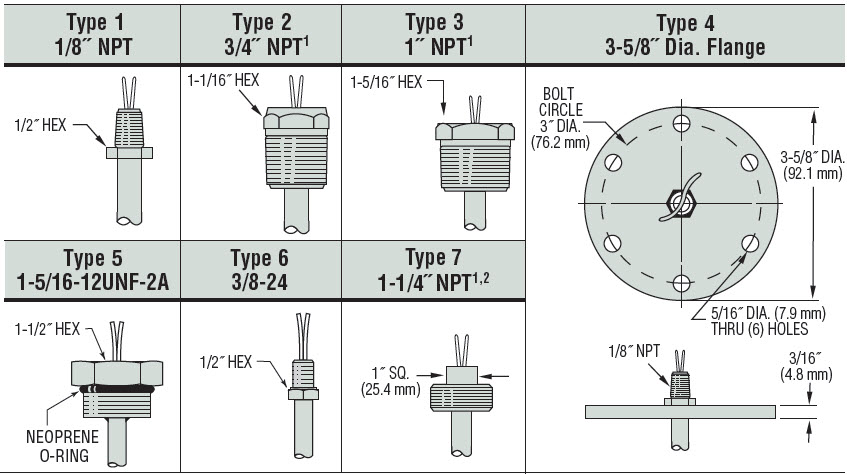

Mounting Type [1] 1/8" NPT or [2] 3/4" NPT or [2C] 3/4" NPT w/1/2" Conduit Connection or [3] 1" NPT or [3C] 1" NPT w/1/2" Conduit Connection or [4] 3-5/8" Dia. Flange or [4C] 3-5/8" Dia. Flange w/1/2" Conduit Connection or [5] 1-5/16-12UNF-2A or [6] 3/8-24 or [7] 1-1/4" NPT or [7C] 1-1/4" NPT w/1/2" Conduit Connection
Stem Material [BR] Brass or [SS] 316 SS
Float Material [BN] Buna N or [SS] 316 SS or [TFE] Teflon or [PP] Polypropylene

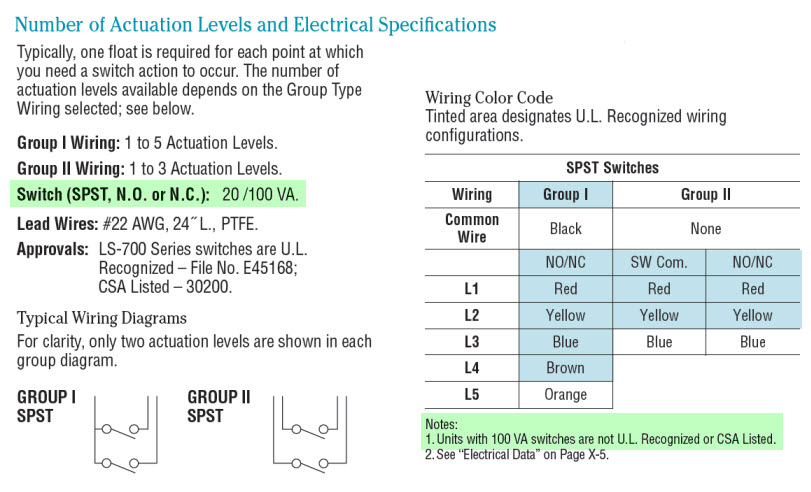

Switch Type [SPST-020] SPST, 20VA or [SPST-100] SPST, 100VA

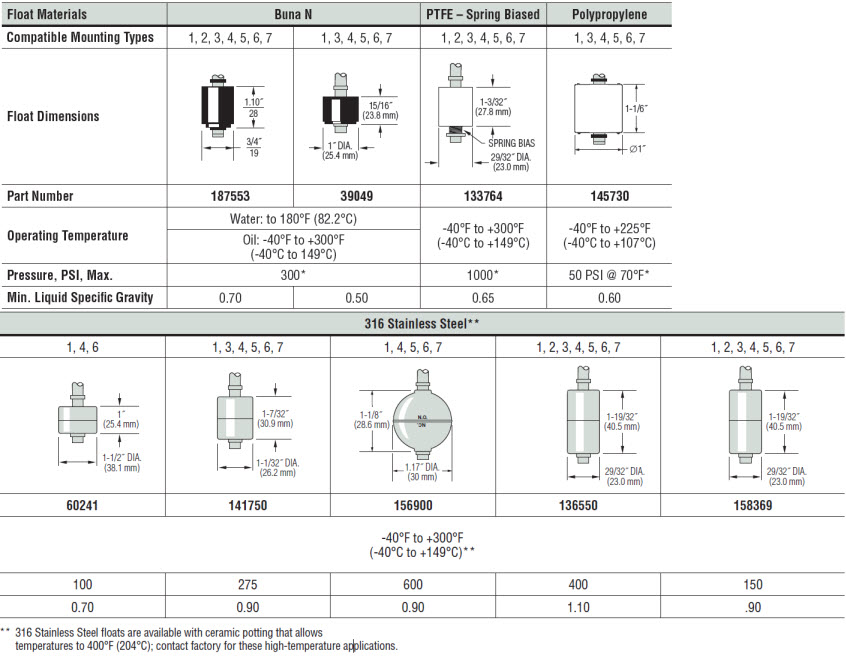

Float Type Buna N Float (187553) or Buna N (39049) or PTFE (133764) or Polypropylene (145730) or 316 SS (60241) or 316 SS (141750) or 316 SS (156900) or 316 SS (136550) or 316 SS (158369)
Electrical Connection Leadwire or Cable or 1/2" Conduit Connector w/ Leadwire or 1/2" Conduit Connector w/ Cable or Nema 4 Junction Box or Connector
Lead Wire Length 24" or 12" or None

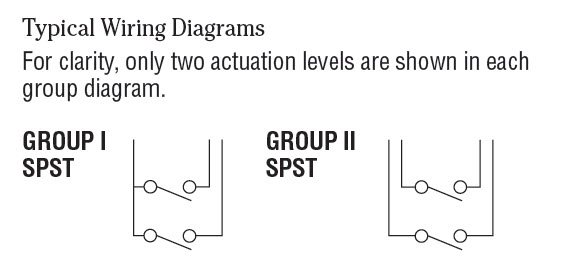

Wiring Group [GR1] Group 1 - Common Return or [GR2] Group 2 - Independent Return

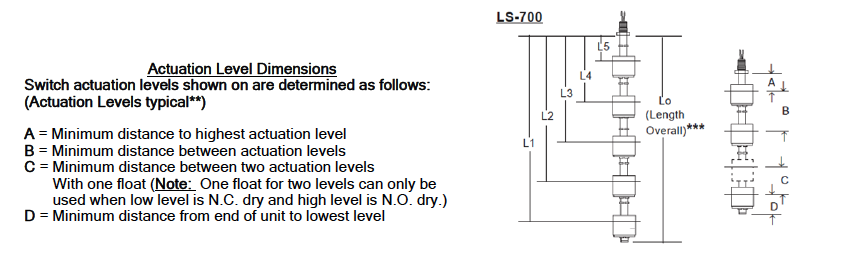

Number of Levels [1] 1 Level (0.688 - 47.000) or [2] 2 Levels (2.125 - 47.000) or [3] 3 Levels (3.563 - 47.000) or [4] 4 Levels (5.000 - 47.000) or [5] 5 Levels (6.438 - 47.000)
(LO) Length Overall in Inches 2" or 3" or 4" or 5" or 6" or 7" or 8" or 9" or 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" or 43" or 44" or 45" or 46" or 47"
L1 (in) Normally Open or Normally Closed
L2 (in) None or Normally Open or Normally Closed
L3 (in) None or Normally Open or Normally Closed
L4 (in) None or Normally Open or Normally Closed
Float Stops Grip Rings or Collars
Optional Bent Stem Without or Bent Stem
Optional Grooved Stem Without or Grooved Stem
Optional Ceramic Potting Without or Ceramic Potting
Optional Bottom Mounted Without or Bottom Mounted
Stainless Steel Tag Without or With - Specify Text
