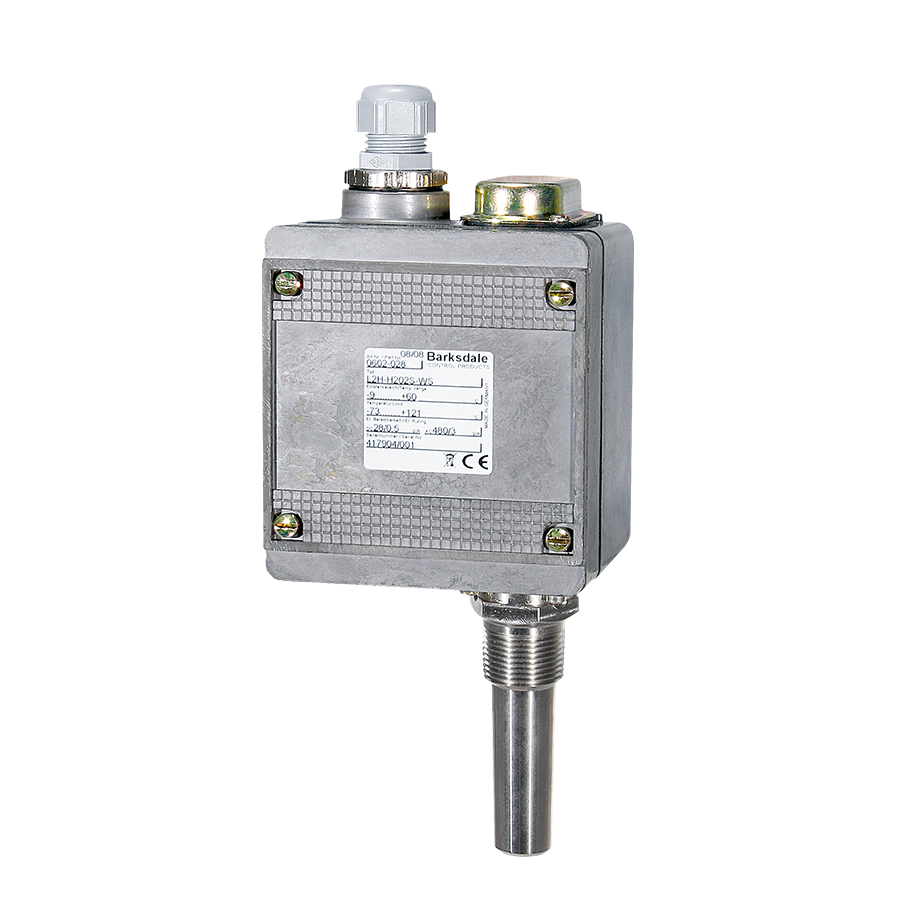

Representative photo. Please check item description for details.
Barksdale Temperature Switch With Brass Well
Manufacturer: Barksdale Inc Dba Dynalco Controls Corp
Mfg Product Code: L2H-B203-W
Weight: 2.0 lb(s)
On Hand: 0
The L2H is a versatile local mount dual switch designed for reliable temperature control in hazardous environments. This switch features an explosion-proof housing and offers flexible configuration options.
Key Features:
- Dual Switching Functionality:
- Two independent switching circuits (S1 and S2) for diverse control applications.
- Use S1 for maximum/minimum monitoring or sensor monitoring.
- Use S2 as a two-position controller with optional disconnection (RD-microswitch) for enhanced safety.
- Local Mounting: Conveniently mounts directly to the process equipment.
- Easy Configuration: Terminal clip integrated and set point adjustment in °C and °F accessible under a tamper-protected cover.
- Robust Construction: Protection class IP65, NEMA 4 / 13 for enhanced durability and environmental protection.
- Enhanced Safety:
- Adjustable hysteresis (dead band) for improved accuracy and reduced cycling (S-microswitch).
- Suitable for SIL2 (IEC 61508) acceptance for safety-critical applications.
- Optional Thermowell: Available in brass (W) or stainless steel (WS) for enhanced durability and compatibility with various process media.
- Comprehensive Approvals: Ex ia, UL, and CSA certified for global use.
Applications:
- Industrial Applications: Precise temperature control in various industrial processes.
- Shipbuilding: Monitor critical temperatures in marine environments.
- Railcars: Monitor and control temperatures in railcar systems.
Barksdale Temperature Switch With Brass Well
Measurement Maximum:200.0
Process Connection Location:Bottom
Measurement Minimum:75
Input Voltage:250 VAC
Input Amps:10.0
NEMA / UL:NEMA 4X
Specifications
| Measurement Maximum | 200.0 |
| Process Connection Location | Bottom |
| Measurement Minimum | 75 |
| Input Voltage | 250 VAC |
| Input Amps | 10.0 |
| NEMA / UL | NEMA 4X |
