Public Pricelist (v2)

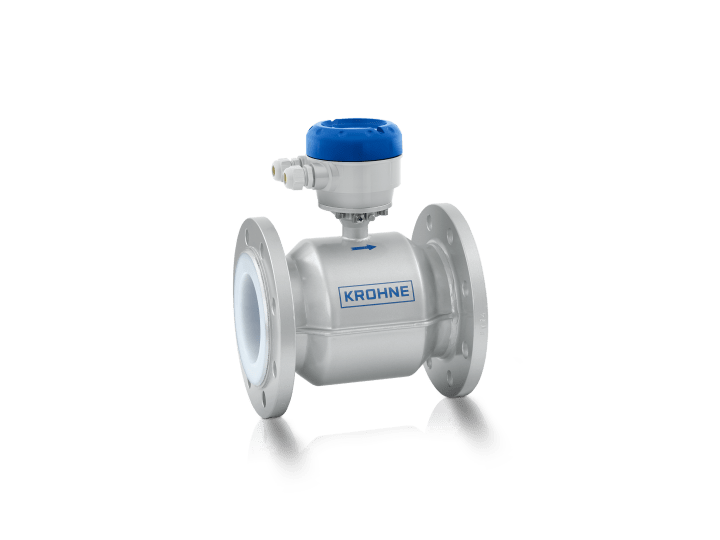

Representative photo. Please check item description for details.

KROHNE Optiflux 2000 Flow Sensor - VN144

https://www.branom.com/web/image/product.template/543575/image_1920?unique=b850b68
(0 review)

Manufacturer: Krohne Inc

Mfg Product Code:

On Hand: 0

Electromagnetic Flow Sensor

  • For all water and wastewater applications
  • Wide range of approvals for potable water
  • Robust, fully welded construction with full bore pipe

Features

  • Rugged liners suitable for any water and wastewater application
  • Proven and unsurpassed lifetime, huge installed base
  • Tamper proof, fully welded construction, also available in customer specific constructions
  • Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
  • Suitable for subsoil installation and constant flooding (IP68)
  • Bi-directional flow metering
  • Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
  • Standard in house wet calibration of flow sensors up to diameter DN3000
  • Easy installation and commissioning
  • No grounding rings with virtual reference option on IFC 300
  • In-situ verification with OPTICHECK
  • Extensive diagnostic capabilities
  • Maintenance-free

  • Nominal Diameter
  • Nominal Pressure
  • Ex-Approvals
  • System Design
  • Converter Model
  • Lining
  • Electrodes
  • Housing / Flange Material
  • Protection Class
  • Cable Length
  • Calibration
  • Grounding Ring
  • Finish

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

KROHNE Optiflux 2000 Flow Sensor - VN144

  • Nominal Diameter
  • Nominal Pressure
  • Ex-Approvals
  • System Design
  • Converter Model
  • Lining
  • Electrodes
  • Housing / Flange Material
  • Protection Class
  • Cable Length
  • Calibration
  • Grounding Ring
  • Finish

$ 2,724.00 2724.0 USD $ 2,724.00

$ 0.00

Not Available For Sale

This combination does not exist.

Specifications

Nominal Diameter [4] DN 25 | 1 in or [5] DN 30 | 1-1/4 in or [6] DN 40 | 1-1/2 in or [7] DN 50 | 2 in or [8] DN 65 | 2-1/2 in or [A] DN 80 | 3 in or [B] DN 100 | 4 in or [C] DN 125 | 5 in or [D] DN 150 | 6 in
Nominal Pressure [A] 150 lb / ASME B 16.5 or [B] 300 lb / ASME B 16.5
Ex-Approvals [0] non Ex or [5] FM CLASS I DIV 2 or [A] cCSAus OL or [C] CSA Class I DIV 2
System Design [1] Compact w/Std Neck (at Converter) or [2] Compact w/Heavy Duty Neck (at Converter) or [4] Separate w/Aluminum Connection Box (1/2" NPT) or [6] Separate w/Aluminum Connection Box (M20 x 1.5) or [A] Separate w/SS Connection Box (1/2" NPT) or [C] Separate w/SS Connection Box (M20 x 1.5)
Converter Model [3] IFC 100 C (Compact) or [4] IFC 100 W (Wall Mount) or [C] IFC 300 C (Compact) or [D] IFC 300 F (Field Mount) or [E] IFC 300 W (Wall Mount) or [F] IFC 300 R (Rack Mount) or [K] IFC 050 C (Compact) or [L] IFC 050 W (Wall Mount)
Lining [0] PP (Potable Water Approvals) or [0] PFA (Ex Approvals) or [5] Hard Rubber (Ex Approvals) or [7] Hard Rubber H10005 (Potable Water Approvals) or [8] Hard Rubber (non Ex Only) or [T] PP - Provided for Protection Rings (Potable Water Approvals)
Electrodes [11] 316Ti SS or [31] Hastelloy C4 or [61] Titanium or [B1] Hastelloy C22
Housing / Flange Material [1] Steel / Carbon Steel (150 lb) or [A] 304 SS / Carbon Steel (150 lb) or [1] 1" Steel / Carbon Steel (300 lb) or [3] 1" Steel / 316 L SS (150 lb) or [3] 1" Steel / 316 L SS (300 lb) or [A] 1" 304 SS / Carbon Steel (300 lb) or [C] 1" 304 SS / 316 L SS (150 lb) or [C] 1" 304 SS / 316 L SS (300 lb) or [1] 1-1/4" Steel / Carbon Steel (300 lb) or [3] 1-1/4" Steel / 316 L SS (150 lb) or [3] 1-1/4" Steel / 316 L SS (300 lb) or [A] 1-1/4" 304 SS / Carbon Steel (300 lb) or [C] 1-1/4" 304 SS / 316 L SS (150 lb) or [C] 1-1/4" 304 SS / 316 L SS (300 lb) or [1] 1-1/2" Steel / Carbon Steel (300 lb) or [3] 1-1/2" Steel / 316 L SS (150 lb) or [3] 1-1/2" Steel / 316 L SS (300 lb) or [A] 1-1/2" 304 SS / Carbon Steel (300 lb) or [C] 1-1/2" 304 SS / 316 L SS (150 lb) or [C] 1-1/2" 304 SS / 316 L SS (300 lb) or [1] 2" Steel / Carbon Steel (300 lb) or [3] 2" Steel / 316 L SS (150 lb) or [3] 2" Steel / 316 L SS (300 lb) or [A] 2" 304 SS / Carbon Steel (300 lb) or [C] 2" 304 SS / 316 L SS (150 lb) or [C] 2" 304 SS / 316 L SS (300 lb) or [1] 2-1/2" Steel / Carbon Steel (300 lb) or [3] 2-1/2" Steel / 316 L SS (150 lb) or [3] 2-1/2" Steel / 316 L SS (300 lb) or [A] 2-1/2" 304 SS / Carbon Steel (300 lb) or [C] 2-1/2" 304 SS / 316 L SS (150 lb) or [C] 2-1/2" 304 SS / 316 L SS (300 lb) or [1] 3" Steel / Carbon Steel (300 lb) or [3] 3" Steel / 316 L SS (150 lb) or [3] 3" Steel / 316 L SS (300 lb) or [A] 3" 304 SS / Carbon Steel (300 lb) or [C] 3" 304 SS / 316 L SS (150 lb) or [C] 3" 304 SS / 316 L SS (300 lb) or [1] 4" Steel / Carbon Steel (300 lb) or [3] 4" Steel / 316 L SS (150 lb) or [3] 4" Steel / 316 L SS (300 lb) or [A] 4" 304 SS / Carbon Steel (300 lb) or [C] 4" 304 SS / 316 L SS (150 lb) or [C] 4" 304 SS / 316 L SS (300 lb) or [1] 5" Steel / Carbon Steel (300 lb) or [3] 5" Steel / 316 L SS (150 lb) or [3] 5" Steel / 316 L SS (300 lb) or [A] 5" 304 SS / Carbon Steel (300 lb) or [C] 5" 304 SS / 316 L SS (150 lb) or [C] 5" 304 SS / 316 L SS (300 lb) or [1] 6" Steel / Carbon Steel (300 lb) or [3] 6" Steel / 316 L SS (150 lb) or [3] 6" Steel / 316 L SS (300 lb) or [A] 6" 304 SS / Carbon Steel (300 lb) or [C] 6" 304 SS / 316 L SS (150 lb) or [C] 6" 304 SS / 316 L SS (300 lb)
Protection Class [0] IP 66/67 or [2] IP 68 Factory or [3] IP 66/67 | ISO Length or [5] IP 68 Factory | ISO Length
Cable Length [00] Compact - None or [00] 5m | 15 ft DS Signal + LIYCY Cable or [01] 10m | 30 ft DS Signal + LIYCY Cable or [02] 15m | 45 ft DS Signal + LIYCY Cable or [03] 20m | 60 ft DS Signal + LIYCY Cable or [04] 25m | 75 ft DS Signal + LIYCY Cable or [05] 30m | 90 ft DS Signal + LIYCY Cable or [06] 40m | 120 ft DS Signal + LIYCY Cable or [07] 50m | 150 ft DS Signal + LIYCY Cable or [08] 100m | 300 ft DS Signal + LIYCY Cable or [00] 5m | 15 ft DS Signal Cable or [01] 10m | 30 ft DS Signal Cable or [02] 15m | 45 ft DS Signal Cable or [03] 20m | 60 ft DS Signal Cable or [04] 25m | 75 ft DS Signal Cable or [05] 30m | 90 ft DS Signal Cable or [06] 40m | 120 ft DS Signal Cable or [07] 50m | 150 ft DS Signal Cable or [08] 100m | 300 ft DS Signal Cable
Calibration [0] Standard or [2] Standard + 316L SS Tagplate (120 x 46 mm) or [3] Standard + 316L SS Tagplate (67 x 25 mm) or [A] Custody Transfer or [C] CT + 316L SS Tagplate (120 x 46 mm) or [D] CT + 316L SS Tagplate (67 x 25 mm) or [H] 3 Points w/Water (Acc. to ISO/IEC 17025 2) or [R] Extended Calibration or [S] Extended Calibration + 316L SS tagplate (120 x 46 mm) or [T] Extended Calibration + 316L SS tagplate (67 x 25 mm)
Grounding Ring [0] Without or [6] 1" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 1" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 1" Ring #1 / Tantalum (150 lb) (x2) or [5] 1" Ring #1 / Titanium (150 lb) (x2) or [7] 1" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 1" Protection Ring #2 / Titanium (150lb) (x2) or [P] 1" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 1" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 1" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 1-1/4" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 1-1/4" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 1-1/4" Ring #1 / Tantalum (150 lb) (x2) or [5] 1-1/4" Ring #1 / Titanium (150 lb) (x2) or [7] 1-1/4" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 1-1/4" Protection Ring #2 / Titanium (150lb) (x2) or [P] 1-1/4" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 1-1/4" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 1-1/4" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 1-1/2" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 1-1/2" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 1-1/2" Ring #1 / Tantalum (150 lb) (x2) or [5] 1-1/2" Ring #1 / Titanium (150 lb) (x2) or [7] 1-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 1-1/2" Protection Ring #2 / Titanium (150lb) (x2) or [P] 1-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 1-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 1-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 2" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 2" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 2" Ring #1 / Tantalum (150 lb) (x2) or [5] 2" Ring #1 / Titanium (150 lb) (x2) or [7] 2" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 2" Protection Ring #2 / Titanium (150lb) (x2) or [P] 2" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 2" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 2" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 2-1/2" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 2-1/2" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 2-1/2" Ring #1 / Tantalum (150 lb) (x2) or [5] 2-1/2" Ring #1 / Titanium (150 lb) (x2) or [7] 2-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 2-1/2" Protection Ring #2 / Titanium (150lb) (x2) or [P] 2-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 2-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 2-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 3" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 3" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 3" Ring #1 / Tantalum (150 lb) (x2) or [5] 3" Ring #1 / Titanium (150 lb) (x2) or [7] 3" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 3" Protection Ring #2 / Titanium (150lb) (x2) or [P] 3" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 3" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 3" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 4" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 4" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 4" Ring #1 / Tantalum (150 lb) (x2) or [5] 4" Ring #1 / Titanium (150 lb) (x2) or [7] 4" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 4" Protection Ring #2 / Titanium (150lb) (x2) or [P] 4" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 4" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 4" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 5" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 5" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 5" Ring #1 / Tantalum (150 lb) (x2) or [5] 5" Ring #1 / Titanium (150 lb) (x2) or [7] 5" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 5" Protection Ring #2 / Titanium (150lb) (x2) or [P] 5" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 5" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 5" Protection Ring #2 / Hastelloy C22 (150lb) (x2) or [6] 6" Ring #1 / Stainless Steel (150 lb) (x2) or [6] 6" Ring #1 / Stainless Steel (300 lb) (x2) or [4] 6" Ring #1 / Tantalum (150 lb) (x2) or [5] 6" Ring #1 / Titanium (150 lb) (x2) or [7] 6" Ring #1 / Hastelloy C22 (150 lb) (x2) or [N] 6" Protection Ring #2 / Titanium (150lb) (x2) or [P] 6" Protection Ring #2 / Stainless Steel (150lb) (x2) or [P] 6" Protection Ring #2 / Stainless Steel (300lb) (x2) or [R] 6" Protection Ring #2 / Hastelloy C22 (150lb) (x2)
Finish [000000000] Standard or [300000000] 1" Offshore or [500000000] 1" Direct Burial Coating or [300000000] 1-1/4" Offshore or [500000000] 1-1/4" Direct Burial Coating or [300000000] 1-1/2" Offshore or [500000000] 1-1/2" Direct Burial Coating or [300000000] 2" Offshore or [500000000] 2" Direct Burial Coating or [300000000] 2-1/2" Offshore or [500000000] 2-1/2" Direct Burial Coating or [300000000] 3" Offshore or [500000000] 3" Direct Burial Coating or [300000000] 4" Offshore or [500000000] 4" Direct Burial Coating or [300000000] 5" Offshore or [500000000] 5" Direct Burial Coating or [300000000] 6" Offshore or [500000000] 6" Direct Burial Coating
