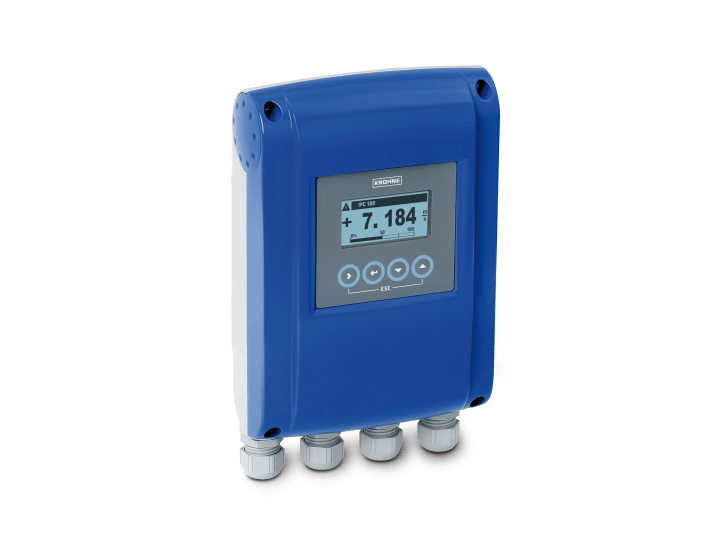

KROHNE IFC 100 Signal Converter
Manufacturer: Krohne Inc
Mfg Product Code:
On Hand: 0
Signal converter for electromagnetic flowmeters
- Extended accuracy option
- Diagnostics of device and application
Highlights
- For operation with a wide range of OPTIFLUX and WATERFLUX flow sensors
- For flow sensors over a diameter range from DN2.5 up to DN1200
- Housing in aluminium with a polyester topcoat or in stainless steel (option)
- Tropicalized electronics to protect it from humidity (option)
- Available outputs: 4...20 mA current output, pulse/frequency output and status output/limit switch
- Control input option
- HART® as standard
- Power supply via 100…230 VAC (standard) or 24 VDC or 24 VAC/DC (optional)
- Clearly readable values due to angle of the signal converter housing which prevents dirt and dust on the display
- Extended calibration option for higher measuring accuracy down to 0.2% of the measuring value
- Excellent price/performance ratio
KROHNE IFC 100 Signal Converter
Outputs:[1000] 4-20 mA/HART + pulse/frequency + status
Specifications
| Type | [4] C-Compact (0°) for Vertical Pipes or [6] C-Compact (45°) for Horizontal Pipes or [N] W-Wall Mount |
| Power Supply | 100-230 V AC or 12-24 V DC * N/A with Class I Div 2 or 19-29 V DC/AC |
| Hazardous Area Approvals | [0] None / General Purpose or [5] cFMus Class 1 DIV 2 or [A] CSA Ordinary Location * Required for Canada |
| Cable Connection | [460] 1/2" NPT or [660] M20 x 1.5 |
| Process Diagnostics | [D] Empty Pipe Detection or [C] Tropicalized electronics for General Purpose only or [0] Standard |
| Converter Housing | [10] Die-Cast Aluminum (Polyurethane Coated) or [20] 316 Stainless Steel |
| Tag Plate | [03] Without or [23] 316 (120x46mm), Add Tag# or [33] 316 (67x25mm), Add Tag# |
| Outputs | [1000] 4-20 mA/HART + pulse/frequency + status |
