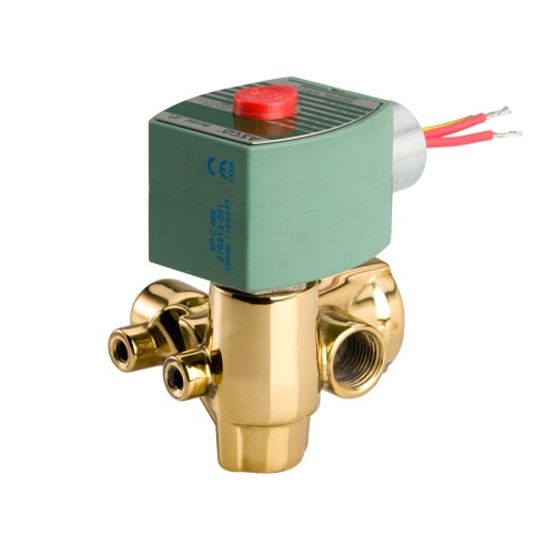

321 Series Quick-Exhaust Solenoid Valve (8321), 1/4" NPT, 120 VAC, Brass, 3 Way-3/2 NC
Manufacturer: Asco LP
Mfg Product Code: JKH8321G001AC120/60,110/50
Weight: 2.01 lb(s)
Solenoid Valve, 1/4" NPT, 120 VAC, 3 Way-3/2 NC
The ASCO Series 321, also known as 8321, quick-exhaust solenoid valves are designed for quick venting to 0 psi through their external orifice. Air is exhausted to rapidly shift control valves. The pilot-operated valves have resilient seated poppets for tight shutoff. They are well suited for refining, chemical, and food and beverage applications that require a quick-exhaust valve.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.80 / 0.69
- Function: 3 way - 3/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water, Light Oil
- Min to Max Operating Pressure (Air): 10 - 200 PSI
- Min to Max Operating Pressure (Water): 10 - 200 PSI
- Min to Max Operating Pressure (Light Oil): 10 - 200 PSI
- Product Weight: 2.01 lbs
- Kit Number: 302925
- Coil Class: HT
- Coil Number: 238412-032
- Min to Max Ambient Temperature: 32 - 125 °F
- Orifice Size: 9/32 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Carton Note: 1/4 X 9/32 3NC BRASS 6.1/H AC
- Holding Current (VA): 16
- Seating Elastomer: NBR
- Mounting Direction: Any:
321 Series Quick-Exhaust Solenoid Valve (8321), 1/4" NPT, 120 VAC, Brass, 3 Way-3/2 NC
Solenoid Valve, 1/4" NPT, 120 VAC, 3 Way-3/2 NC
Brand_Name:Asco
Mounting Direction:Any
Process Connection Type:NPT
Flow Coefficient:0.80 Cv
Process Connection Size:1/4"
Input Voltage:120 VAC
Function:3 Way 3/2 Normally Closed
Coil Class:HT
Frequency:60 Hz
Body Material:Brass
NEMA / UL:NEMA 1/2/3/3S/4/4X
Seal Material:NBR
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.80 Cv |
| Process Connection Size | 1/4" |
| Input Voltage | 120 VAC |
| Function | 3 Way 3/2 Normally Closed |
| Coil Class | HT |
| Frequency | 60 Hz |
| Body Material | Brass |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
