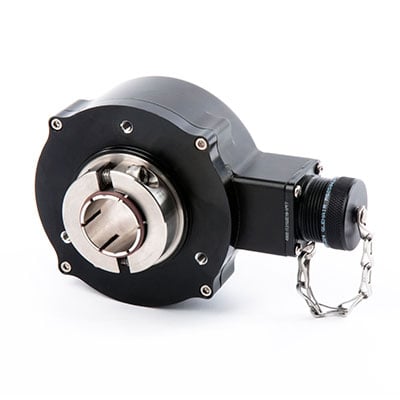

Dynapar ISD37 Series NorthStar Hazardous Duty Encoder 3072 PPR, ¾” SHAFT, Differential ABZ, 7-26 in, 7-26out, Terminal Box w/Conduit Entry

Manufacturer: Dynapar Corporation

Mfg Product Code: ISD373072DLT002

Weight: 2.2 lb(s)

ISD37 Series Encoder

The ISD37 Series is designed for Extreme Duty applications. This robust encoder features a double-sealed housing that allows applications where regulatory wash-down or caustic chemicals are present. It can operate in high shock and vibration environments and is an Intrinsically Safe version, hazardous location certified, when used with the appropriate IS Barrier.

Features

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Connection Location: Radial
• Connection Type: Conduit Box
• Disk Material: Aluminum
• Fixing: No Fixing
• Flange Material: Anodized Aluminum
• Housing Material: Anodized Aluminum
• Maximum Operating Speed (RPM): 6000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 19.05
• Shaft Type: Hollow Shaft
• Special Shaft Feature: Electrically Isolated Shaft
• Starting Torque (Ncm): 3.17
• Termination: Terminal Box w/ Conduit Entry
• Duty Cycle: 45-55%
• Incremental Signals: A, A', B, B', Z, Z'
• Input Voltage: 7-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 125
• Output Signal: 5-26 VDC
• Resolution (PPR): 3072
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes
• Approvals / Certifications: [ATEX, CE, IECEx, ROHS, UL Certified]
• Hazardous Area Rating: [Class 1 Div 1, Class 1 Div 2, Zone 0, Zone 1, Zone 2]
• Hazardous Area Rating Certification: [Class 1, Div 1 Groups C&D, Ex ia op is IIB T4 Ga]
• Housing Protection Level: IP67
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 80
• Maximum Storage Temperature (°C): 100
• Minimum Operating Temperature (°C): -40
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 400G, 6msec
• Vibration Resistance: 20G, 5-3000Hz
