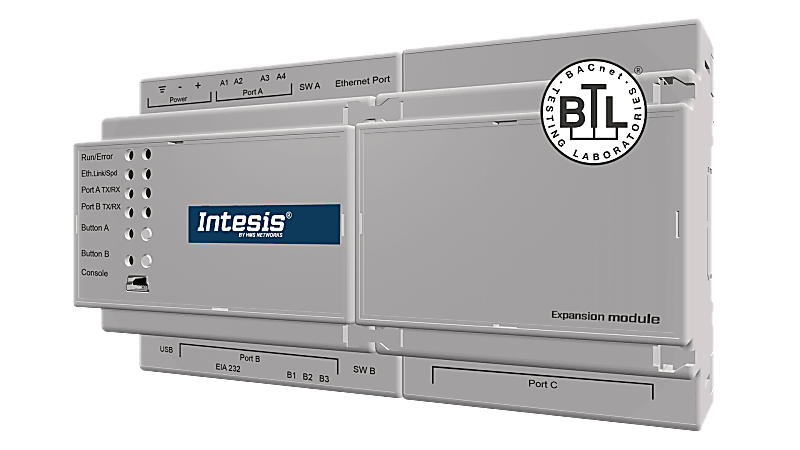

Intesis PROFINET IO Device to BACnet IP & MS/TP Server Gateway - 1200 points

Manufacturer: HMS Industrial Networks Inc

Mfg Product Code: INBACPRT1K20000

Weight: 0.64 lb(s)

The Intesis BACnet-PROFINET gateway allows you to seamlessly interconnect PLC/BMS systems and their connected devices between BACnet/IP and MS/TP control systems and PROFINET networks. The gateway works as a BACnet server on the BACnet side and as a PROFINET I/O device on the PROFINET side and is configured via the Intesis MAPS configuration tool.

Features

• Support for BACnet/IP or BACnet MS/TP server
  BACnet/IP (via Ethernet) or BACnet MS/TP (via EIA-485) server connection options are supported.
• BACnet Advanced features - calendars, schedules…
  BACnet's advanced features, such as calendars, trend logs, schedules, and more, are available.
• PROFINET-IO adapter interface (Anybus technology)
  The gateway uses PROFINET-IO Anybus technology, which uses the award-winning NP40 network processor.
• GSDML and TAG configuration files export option
  GSDML and TAG configuration files can be exported for easy integration into Profinet PLCs.
• Input and output data support (up to 500 bytes)
  Data transmission supports a maximum of up to 500 bytes of input and output data.
• Configuration tool and gateway's automatic updates
  Both the Intesis MAPS configuration tool and the gateway's firmware can receive automatic updates.
