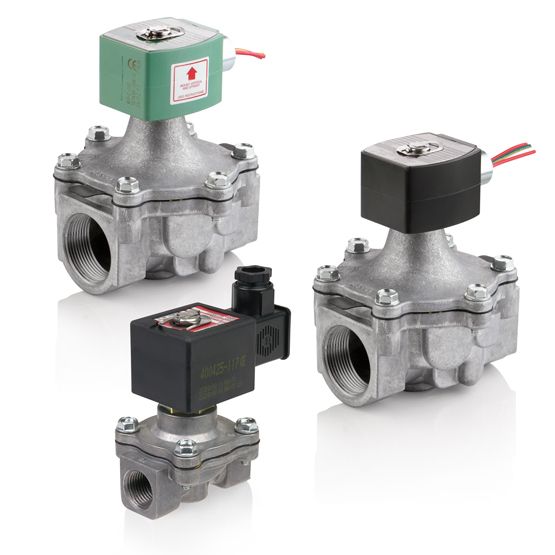

ASCO Series 215 High-Flow Gas Shut Off Valve (8215)
Manufacturer: Asco LP
Mfg Product Code: HT8215G080VMAC120/60D
Weight: 2.0 lb(s)
2 X 2-3/ 2NC ALUMIN16.1/H W
2 X 2-3/ 2NC ALUMIN16.1/H W
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
ASCO Series 215 High-Flow Gas Shut Off Valve (8215)
2 X 2-3/ 2NC ALUMIN16.1/H W
Valve: Actuation:Solenoid - Direct Acting
Orifice Size:2-3/32 in
Media:Vacuum
Flow (Cv / Kv):55.00 / 47.57
Mounting Direction:Vertical & Upright
Process Connection Type:NPT
Holding Current (VA):27
Function:2 Way 2/2 Normally Closed
Body Material:Aluminum
Lead Length:18 in
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Uncategorized | |
|---|---|
| Orifice Size | 2-3/32 in |
| Media | Vacuum |
| Flow (Cv / Kv) | 55.00 / 47.57 |
| Mounting Direction | Vertical & Upright |
| Process Connection Type | NPT |
| Holding Current (VA) | 27 |
| Function | 2 Way 2/2 Normally Closed |
| Body Material | Aluminum |
| Lead Length | 18 in |
