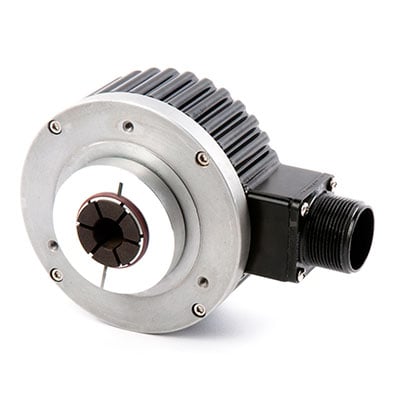

Dynapar HSD38 Series Harsh Duty Encoder, 1024PPR

Manufacturer: Dynapar Corporation

Mfg Product Code: HSD381024G43700

Weight: 4.5 lb(s)

HSD38: Size 38 Heavy-Duty, hollowshaft encoder
1024: 1024 PPR
G: 1" Bore (not electrically isolated)
4: Differential, bidirectional with index (A,A-Not,B,B-Not,Z,Z-Not)
3: 5-26V in, 5-26V differential line driver out
7: 10 pin connector w/mating connector
0: No options
0: Cast Aluminum Housing, slotted tether included

HSD38 Series Encoder

The HSD38 Series is designed for Extreme Duty applications. This robust encoder features a double-sealed housing that allows applications where regulatory wash-down or caustic chemicals are present. It can operate in high shock and vibration environments and is available in an Intrinsically Safe version, certified to ATEX, when used with the appropriate IS Barrier.

Features

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Connection Type: Connector
• Disk Material: Aluminum
• Fixing: Slotted Tether
• Flange Material: Aluminum
• Maximum Operating Speed (RPM): 6000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 25.4
• Shaft Type: Hollow Shaft
• Special Shaft Feature: Non-Electrically Isolated Shaft
• Starting Torque (Ncm): 5.64
• Termination: 10 Pin + Mating
• Duty Cycle: 45-55%
• Incremental Signals: A, A', B, B', Z, Z'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 125
• Output Signal: 5-26
• Resolution (PPR): 1024
• Reverse Polarity Protection: Yes
• Approvals / Certifications: [CE, ROHS]
• Housing Protection Level: IP67
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 100
• Maximum Storage Temperature (°C): 100
• Minimum Operating Temperature (°C): -40
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 50G, 11msec
• Vibration Resistance: 20G, 5-3000Hz
