Dynapar HSD35 Series Heavy Duty Optical Encoder, 1024PPR, 5/8" Bore Size, Differential ABZ, 5-15 in, 5-15 out
Manufacturer: Dynapar Corporation
Mfg Product Code: HSD3510248D9
Weight: 2.0 lb(s)
On Hand: 0
HSD35 Encoder

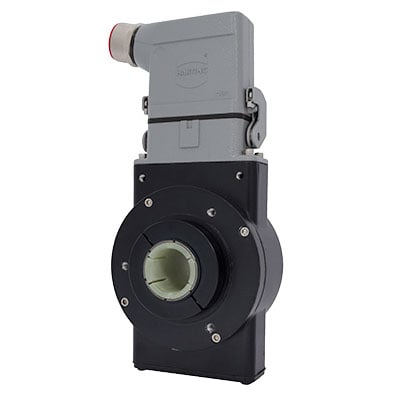

The HSD35 encoder is similar to our HS35R but with EPIC/Latching industrial connectors, stainless steel shaft/clamp and Viton seals making this and ideal encoder for Mill applications.
Features
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Connection Location: Radial
- Connection Type: Connector
- Disk Material: Aluminum
- Fixing: Rod Tether Kit, (AC Motor Fan Cover w/ T-bolt) + Fan Cover Kit
- Flange Material: Powder Coated Aluminum
- Housing Material: Powder Coated Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 15.875
- Shaft Type: Hollow Shaft
- Special Shaft Feature: Electrically Isolated Shaft
- Starting Torque (Ncm): 7.77
- Termination: 10 Pin Latching Industrial Connector
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 4469
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-15 VDC
- Resolution (PPR): 1024
- Reverse Polarity Protection: Yes
- Short Circuit Protection: No
- Approvals / Certifications: [CE, ROHS]
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 85
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 400G, 6msec
- Vibration Resistance: 20G, 5-3000Hz
