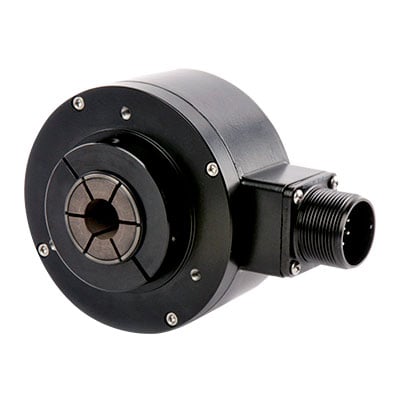

Dynapar HS35R Series Heavy Duty Encoder, 1024 PPR, 1" Bore, Slotted Tether,Differential Ab Only, 5-26VDC, 5-26VDC Out

Manufacturer: Dynapar Corporation

Mfg Product Code: HS35R1024H34E

Weight: 5.3 lb(s)

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

• General

  • Feedback Type: Incremental
  • Technology Sensing Type: Optical
  • Weight (Pounds): 5.3

• Mechanical

  • Connection Location: Radial
  • Connection Type: Pigtail Cable
  • Disk Material: Aluminum
  • Fixing: Slotted tether (to fit standard AC motor fan cover)
  • Flange Material: Powder Coated Aluminum
  • Maximum Operating Speed (RPM): 6000
  • Shaft / Bore Material: Aluminum
  • Shaft / Bore Size (mm): 25.4
  • Shaft Type: Hollow Shaft
  • Special Shaft Feature: Electrically Isolated Shaft
  • Starting Torque (Ncm): 5.65
  • Termination: 3 m (120 in) Cable

• Electrical

  • Duty Cycle: 45-55%
  • Incremental Signals: A, A', B, B'
  • Input Voltage: 5-26 VDC
  • Line Driver Type: 7272
  • Maximum Frequency Response (KHz): 125
  • Output Signal: 5-26 VDC
  • Resolution (PPR): 1024
  • Reverse Polarity Protection: Yes
  • Short Circuit Protection: Yes
