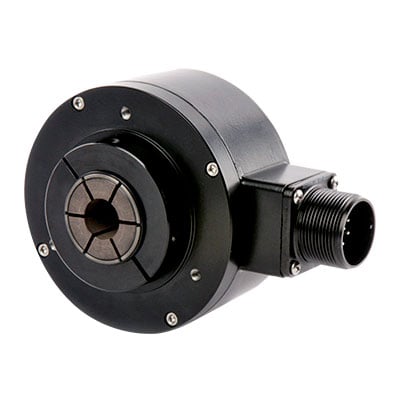

Dynapar HS35R Series Encoder, Heavy Duty, Hollow Shaft, 1024 PPR, 5/8" Bore, 120" Cable

Manufacturer: Dynapar Corporation

Mfg Product Code: HS35R1024837E

Weight: 5.3 lb(s)

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

General

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Weight (Pounds): 5.3

Mechanical

• Connection Location: Radial
• Connection Type: Pigtail Cable
• Disk Material: Aluminum
• Fixing: Slotted tether (to fit standard AC motor fan cover)
• Flange Material: Powder Coated Aluminum
• Maximum Operating Speed (RPM): 6000
• Shaft / Bore Material: Aluminum
• Shaft / Bore Size (mm): 15.875
• Shaft Type: Hollow Shaft
• Special Shaft Feature: Electrically Isolated Shaft
• Starting Torque (Ncm): 5.65
• Termination: 3 m (120 in) Cable

Electrical

• Duty Cycle: 45-55%
• Incremental Signals: A, A', B, B', Z, Z'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 125
• Output Signal: 5-26 VDC
• Resolution (PPR): 1024
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes

Environmental

• Approvals / Certifications: [CE, ROHS]
• Hazardous Area Rating: [None]
• Hazardous Area Rating Certification: [None]
• Housing Protection Level: IP67
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 85
• Maximum Storage Temperature (°C): 100
• Minimum Operating Temperature (°C): -40
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 400G, 6msec
• Vibration Resistance: 20G, 5-3000Hz
