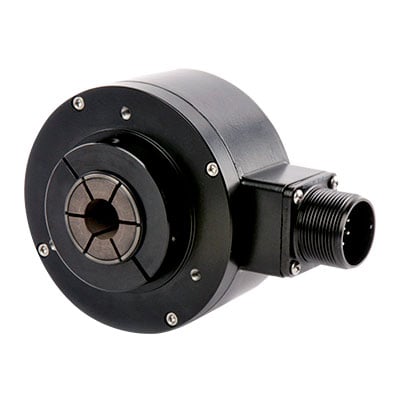

Dynapar HS35R Series Heavy Duty Hollowshaft Encoder
Manufacturer: Dynapar Corporation
Mfg Product Code: HS35R0120H372
Weight: 5.3 lb(s)
On Hand: 0
120PPR
1" Bore
Slotted Tether
Output: Differential ABZ, 5-26VDC in/5-26VDC out
10 Pin Termination
No Options
The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 5.3
Mechanical
- Connection Location: Radial
- Connection Type: Connector
- Disk Material: Aluminum
- Fixing: Slotted tether (to fit standard AC motor fan cover)
- Flange Material: Powder Coated Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 25.4
- Shaft Type: Hollow Shaft
- Special Shaft Feature: Electrically Isolated Shaft
- Starting Torque (Ncm): 5.65
- Termination: 10 Pin MS
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 72721
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-26 VDC
- Resolution (PPR): 120
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
Environmental
- Approvals / Certifications: [CE, ROHS] #BBD0E0 »
Dynapar HS35R Series Heavy Duty Hollowshaft Encoder
120PPR
1" Bore
Slotted Tether
Output: Differential ABZ, 5-26VDC in/5-26VDC out
10 Pin Termination
No Options
Measurement Minimum:0
Ingress Protection:IP67
Specifications
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
