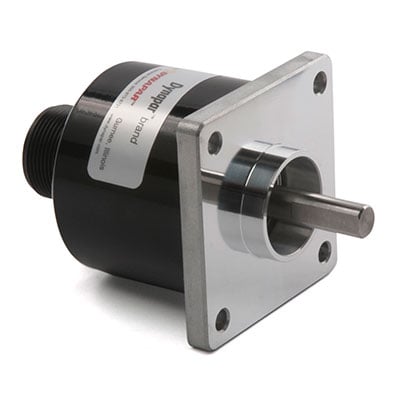

Dynapar HR25 Series Encoder, Shielded Bearings, 1024PPR, Flange Mount, 1/4" Shaft, End Mount Connector

Manufacturer: Dynapar Corporation

Mfg Product Code: HR625102423D0

Weight: 5.0 lb(s)

Differential, no Index, Format C, Table 3
5-26V in; 5-26V
Line Driver out (7272)

Series HR25 Encoder

The Series HR25 is a rugged, reliable and economical encoder for industrial motion applications.

Features

• Feedback Type: Incremental
• Mounting Configuration: Flange
• Technology Sensing Type: Optical
• Connection Location: Axial
• Connection Type: Connector
• Disk Material: Mylar
• Flange Material: Aluminum
• Maximum Operating Speed (RPM): 10000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 6.35
• Shaft Type: Shafted
• Termination: 10 Pin MS
• Duty Cycle: 45-55%
• Incremental Signal Format: Format A: A Leads B CCW; Index Width (180°) Gated to B'
• Incremental Signals: A, A', B, B', Z, Z'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 100
• Output Signal: 5 VDC
• Resolution (PPR): 1024
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes
• Housing Protection Level: IP66
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 85
• Maximum Storage Temperature (°C): 90
• Minimum Operating Temperature (°C): 0
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 50G, 11msec
• Vibration Resistance: 20G, 5-2000Hz
