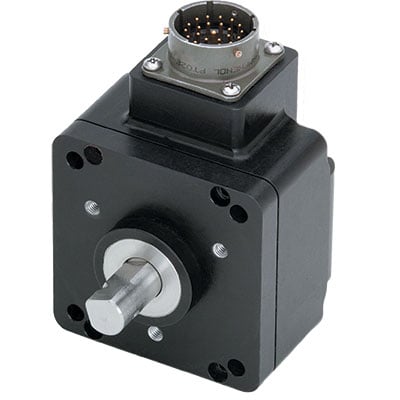

Representative photo. Please check item description for details.
Dynapar HD25 Series Heavy Duty Optical Encoder
Manufacturer: Dynapar SPT/Joslyn Clark/Namco
Mfg Product Code: HD2530300035M
Weight: 0.01 lb(s)
On Hand: 0
HD25 Heavy Duty Optical Encoder
The HD25 heavy duty optical encoder is ideal for machine applications in corrosive environments or that demand stringent wash-downs thanks to its stainless steel housing option. This compact, special-duty encoder is designed to IP67 and NEMA 6 enclosure requirements with a PPR range through 5000. An intrinsically safe version of the product is available with ATEX, UL and IECEx certifications is also available for hazardous location applications (see HD20 Hazardous Series).
Features
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Connection Type: Connector
- Disk Material: Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 9.525
- Shaft Type: Shafted
- Special Shaft Feature: Shaft Flat Included
- Starting Torque (Ncm): 1.77
- Termination: 10 Pin MS
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-26 VDC
- Resolution (PPR): 300
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 100
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 50G, 11msec
- Vibration Resistance: 20G, 5-2000Hz
