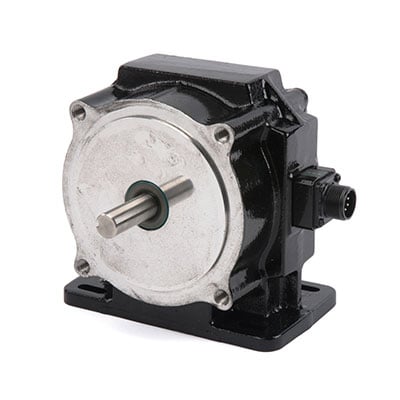

Dynapar H56 Series NorthStar Rotopulser

Manufacturer: Dynapar Corporation

Mfg Product Code: H5625001243

Weight: 5.0 lb(s)

Series H56 Rotopulser

The Series H56 Rotopulser is the most rugged and reliable digital pulse generator available for heavy industrial speed, length, and position applications.

Features

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Connection Location: Radial
• Connection Type: Conduit Box with Mating Connector
• Disk Material: Glass
• Flange Material: Aluminum
• Housing Material: Aluminum
• Maximum Operating Speed (RPM): 5000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 15.875
• Shaft Loading Axial (mm): 22.2
• Shaft Loading Radial (mm): 22.2
• Shaft Type: Shafted
• Starting Torque (Ncm): 14.12
• Termination: Pluggable Screw Terminal + Mating
• Duty Cycle: 43-57%
• Incremental Signals: A, A', B, B'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 100
• Output Signal: 5-26 VDC
• Resolution (PPR): 2500
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes
• Housing Protection Level: IP54
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 70
• Maximum Storage Temperature (°C): 90
• Minimum Operating Temperature (°C): 0
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 50G, 11msec
• Vibration Resistance: 20G, 5-2000Hz
