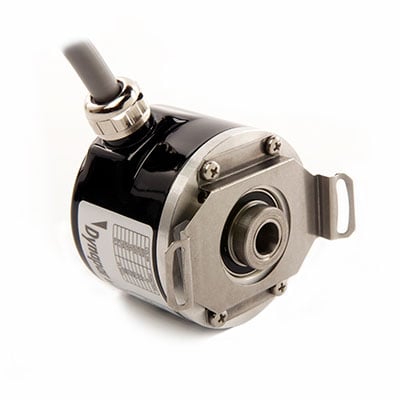

Dynapar H20HS Series Encoder, Bidirectional, 300PPR

Manufacturer: Dynapar Corporation

Mfg Product Code: H230300032534

Weight: 3.1 lb(s)

The Dynapar brand Series H20 Hub Shaft encoder is a rugged, reliable and economical encoder for direct coupling to motors or machine shafts.

General

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Weight (Pounds): 3.1
• Mounting Configuration: Servo

Mechanical

• Connection Location: Axial
• Connection Type: Connector
• Disk Material: Mylar
• Flange Material: Aluminum
• Housing Material: Aluminum
• Maximum Operating Speed (RPM): 5000
• Shaft / Bore Material: Aluminum
• Shaft / Bore Size (mm): 9.525
• Shaft Type: Hub Shaft
• Starting Torque (Ncm): 2.12
• Termination: 10 Pin MS

Electrical

• Duty Cycle: 45-55%
• Incremental Signal Format: A Leads B CCW viewed from Shaft end of Encoder
• Incremental Signals: A, A', B, B', Z, Z'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 100
• Output Signal: 5-26 VDC
• Resolution (PPR): 300
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes

Environmental

• Hazardous Area Rating: [None]
• Hazardous Area Rating Certification: [None]
• Housing Protection Level: IP54;NEMA12
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 70
• Maximum Storage Temperature (°C): 90
• Minimum Operating Temperature (°C): 0
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 50G, 11msec
• Vibration Resistance: 20G, 5-2000Hz
