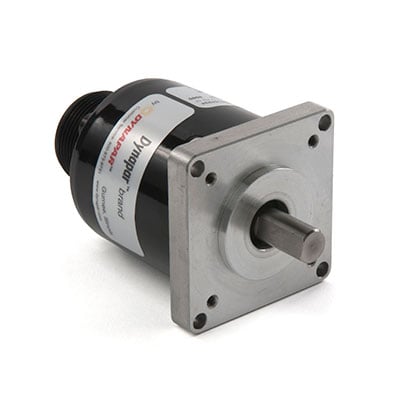

Dynapar H20 Series Rigged Shaft Encoder, Bidirectional, 500PPR, Servo Mount, 3/8” Dia Shaft

Manufacturer: Dynapar Corporation

Mfg Product Code: H220500001142

Weight: 3.1 lb(s)

The Series H20 is a rugged, reliable and economical encoder with sealing options making this product dirt tight, dust proof, splash proof and capable of handling wash-downs. The H20 is ideal for industrial motion applications.

General

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Weight (Pounds): 3.1
• Mounting Configuration: Servo

Mechanical

• Connection Location: Axial
• Connection Type: Connector
• Disk Material: Mylar
• Flange Material: Aluminum
• Housing Material: Aluminum
• Maximum Operating Speed (RPM): 5000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 9.525
• Shaft Type: Shafted
• Special Shaft Feature: Shaft Flat Included
• Starting Torque (Ncm): 0.71
• Termination: 7 Pin MS

Electrical

• Duty Cycle: 45-55%
• Incremental Signal Format: A Leads B CCW viewed from Shaft end of Encoder
• Incremental Signals: A, A', B, B'
• Input Voltage: 5-26 VDC
• Line Driver Type: 7272
• Maximum Frequency Response (KHz): 100
• Output Signal: 5 VDC
• Resolution (PPR): 500
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes

Environmental

• Hazardous Area Rating: [None]
• Hazardous Area Rating Certification: [None]
• Housing Protection Level: IP54;NEMA12
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 70
• Maximum Storage Temperature (°C): 90
• Minimum Operating Temperature (°C): 0
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 50G, 11msec
• Vibration Resistance: 20G, 5-2000Hz
