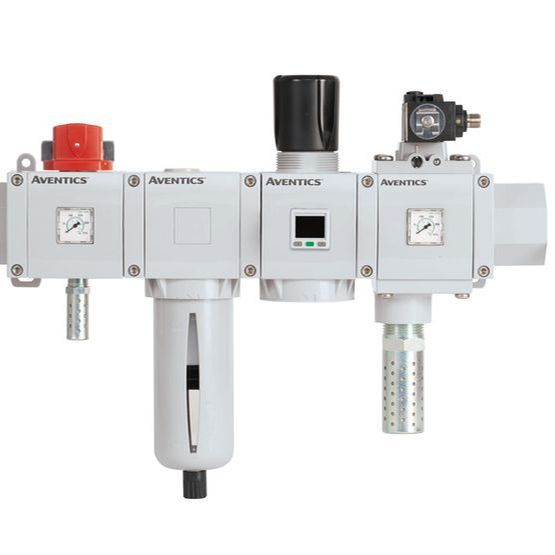

AVENTICS 652 Series Air Preparation Unit, G 1/2 BSP, IO-Link, A-Coded 5-Pin M12X1 Plug

Manufacturer: Asco LP

Mfg Product Code: G652AV004JA0000

Weight: 2.0 lb(s)

Air Prep Unit, BSP -20 °C, IO-Link, A-Coded 5-Pin M12X1 Plug

The AVENTICS Series 652 is an easy-to-install line of pneumatic filters, regulators and lubricators (FRLs) that offer the industry´s highest flow rates and widest temperature ratings. Available in 1/4-inch, 3/8-inch, and 1/2-inch port sizes, these FRLs are ideal for automotive and tire, packaging, food and beverage, and process applications requiring highly reliable operation and robust, modern-looking equipment. Available with integrated redundant safe exhaust valve and IIoT enabled air flow sensor.

Features

• Note: Output signal: 1 analog output 4 mA ... 20 mA + 1 digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable)+1 digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud)
• Switching principle: Flow measuring principle: calorimetric
• Protocol: IO-Link
• Nominal flow Qn min., standard: 5.3 l/min
• Nominal flow Qn max., standard: 1060 l/min
• Nominal flow Qn min., extended: 1060 l/min
• Nominal flow Qn max., extended: 1590 l/min
• Compressed air connection: G 1/2
• Certificates: CE declaration of conformity, RoHS
• Working pressure min.: 0 bar
• Working pressure max: 16 bar
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -20 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air, Argon, Nitrogen, Helium, Carbon dioxide
• Display: OLED
• Flow display unit: l/sec, l/min, m³/min, m³/h, ft³/s, m³/min
• Pressure display unit: bar, psi
• Temperature display unit: °C, °F
• Electrical connection Type: Plug
• Electrical connection size: M12x1
• Electrical connection pin: 5-pin
• Electrical connection coding: A-coded
• Output signal digital: PNP, NPN, push-pull, 1x IO-Link:
