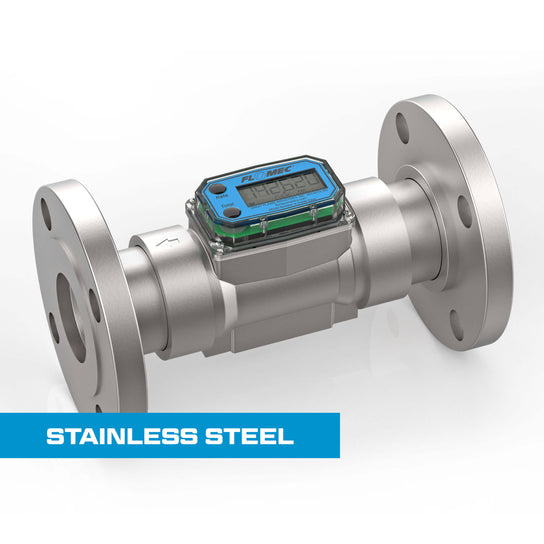

G2 Series Turbine Flow Meter, 2" #150 ANSI Flange, Display, Stainless Steel Body, 4-20mA+Pulse Outputs

Manufacturer: Great Plains Industries (GPI/Flomec)

Mfg Product Code: G2S20F42GMZ

Weight: 0.01 lb(s)

The FLOMEC G2 Stainless Steel series offers a robust design for metering more demanding liquid flow, withstanding high-pressure and high-temperature applications. The factory 5-point calibration process ensures accuracy of reading across the flow range.

Features & Benefits

• Features highly visible Q9, battery-powered, LCD display; 2-year battery life
• Add the 4-20mA Module to your turbine meter display electronics to provide an industry-standard analog signal for connection to a variety of chart recorders, display equipment, and process control equipment. See Optional Output Module details.
• 11 pre-programmed engineering units plus 1 custom option: gallon, litre, imperial gallon, quart, ounce, acre-foot, millilitre, cubic foot, cubic centimetre, cubic metre, barrel
• High accuracy meter – view SPECIFICATIONS of each SKU once meter options are selected
• Modular design allows for use with output modules, sensors, and remote display kits; plug and play
• Internal parts are simple to replace for easy maintenance
• NPT, ISO 7, #150 ANSI Flange, and Tri-clamp fitting options
• Tri-clamp (not food grade) options available: ¾-inch fitting for ½-inch pipe, 1-inch fitting for ¾-inch pipe, 1-½-inch fitting for 1-inch pipe, 2-inch fitting for 1-½-inch pipe, 2-½-inch fitting for 1-inch pipe
