Puls Field PS, 360W, 100-240VAC, 1PH, 24-28VDC, 10A Outputs (In 7/8" 3pin, Out 7/8" 5pin), IO-Link, IP67
Manufacturer: Puls Lp
Mfg Product Code: FPS300.245-016-101
Weight: 2.7 lb(s)
On Hand: 0

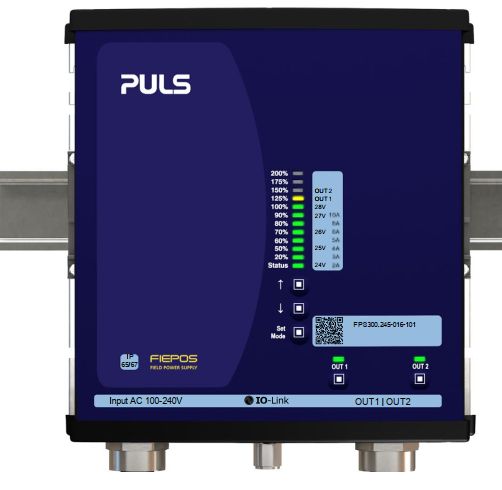

The Puls FPS300.245-016-101 is a robust 3-phase DIN rail power supply. It provides 24V DC output at 12.5A, ideal for demanding industrial applications. This unit features high efficiency and a compact design, ensuring reliable performance in harsh environments.
Features
- IP 65/67 Degree of protection
- 600 Wpeak 5s
- 1AC 100-240 V wide-range input
- 2 switchable outputs
- Outputs for actors and sensors separately protected
- 95.7 % full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power up to +45 °C
- IO-Link
- Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
Puls Field PS, 360W, 100-240VAC, 1PH, 24-28VDC, 10A Outputs (In 7/8" 3pin, Out 7/8" 5pin), IO-Link, IP67
Measurement Maximum:0
Measurement Minimum:0
Input Voltage:100-240 VAC
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Voltage | 100-240 VAC |
