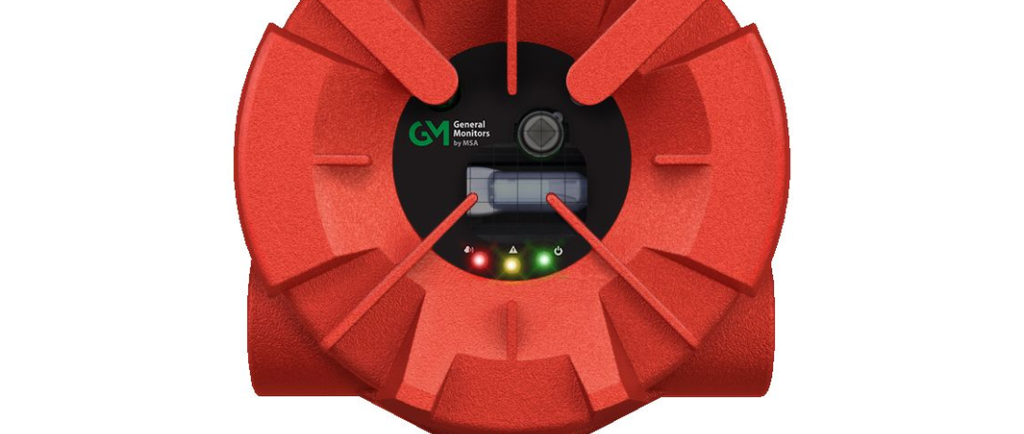

FL500 UV/IR Flame Detector

Manufacturer: MSA Safety Sales LLC

Mfg Product Code: FL500-1-5-1-2-1-2-1-1

Weight: 0.01 lb(s)

A UV/IR flame detector combines an ultraviolet (UV) sensor
for quick response and an infrared (IR) sensor that monitors
radiation emitted by a flame. This combination offers increased
immunity, operates at faster speeds and is suited for both
indoor and outdoor use

Alarm Output [1] 4-20mA Source SglMod nHART
Relay State [5] nL AL/nL Warn dEnergized
Sensitivity [1] 100% Sensitivity
Time Delay [2] 4 Second Delay
Housing [1] Stainless Steel
Approvals [2] CSA/ATEX/IEC Ex/JNIOSH - H2
Cable Entry [1] 2 x 3/4" NPT
Mounting [1] With Mounting Bracket
