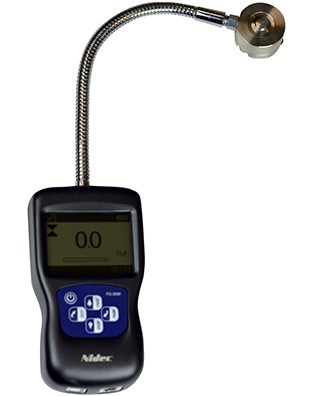

Shimpo 5 kN capacity (1100 lbf) Digital Force Gauge with Integral Ring Sensor, Data Output

Manufacturer: Seals USA Inc aka Nidec Shimpo

Mfg Product Code: FG-3000R-5

Weight: 5.0 lb(s)

5 kN capacity (1100 lbf) Digital Force Gauge with Integral Ring Sensor, Data Output

Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail icons provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation enables switching from display direction to aid in viewing.

Features
