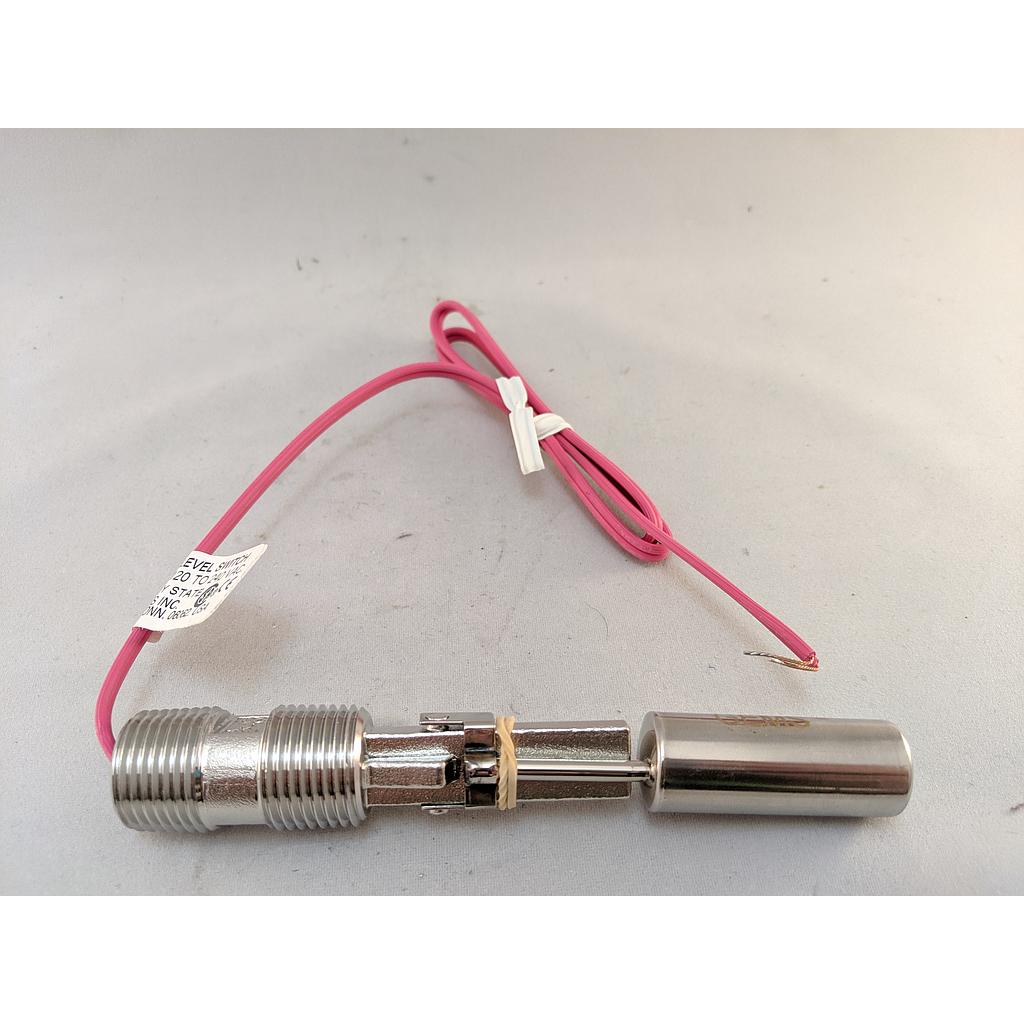

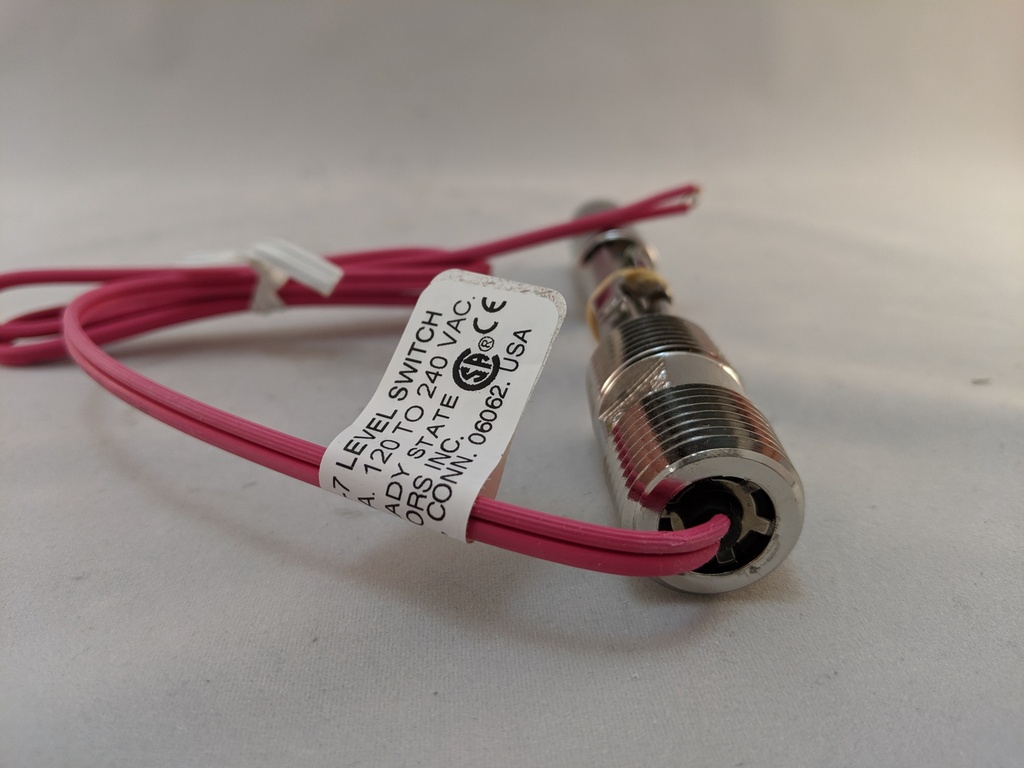

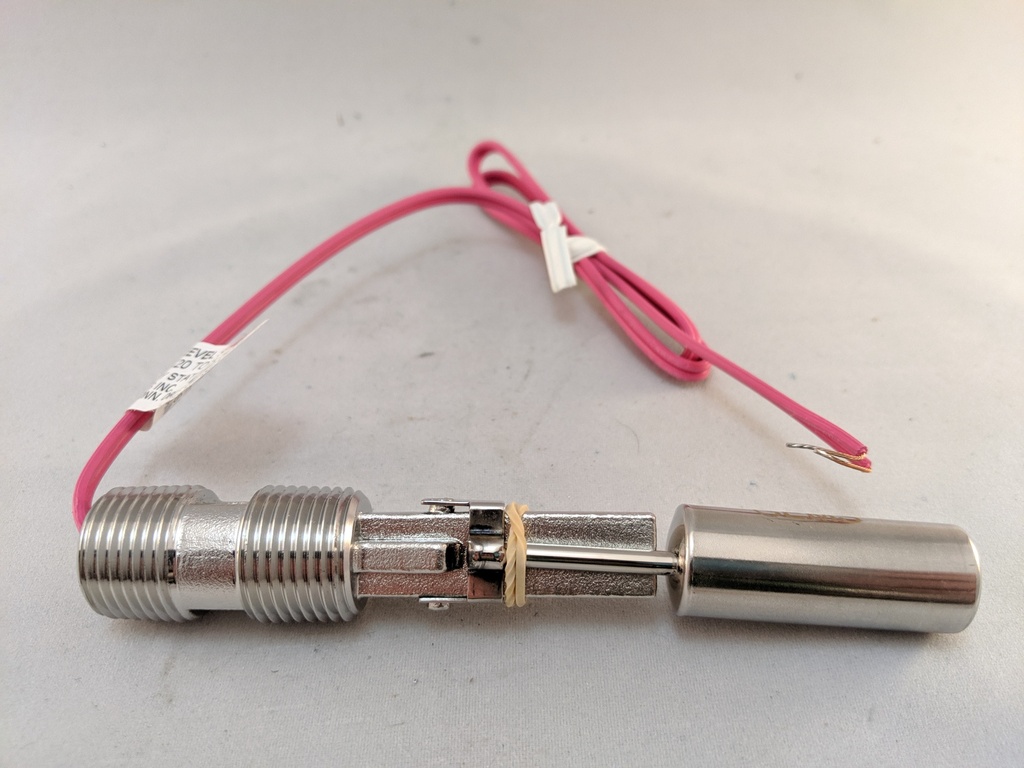

Dwyer F7 Series, 316SS Float & Stem
https://www.branom.com/shop/f7-hss-dwyer-f7-series-316ss-float-stem-193910
https://www.branom.com/web/image/product.template/193910/image_1920?unique=c027cce
(0 review)
Manufacturer: Dwyer Instruments Inc
Mfg Product Code: F7-HSS
Weight: 0.5 lb(s)
On Hand: 3
The Series F6 & F7 Horizontal Float Level Switches are designed to mount through the walls of tanks and other vessels. Internally mounted models F6-HPS-11, F6-MHS and F7-SS6 are secured to the wall of the tank or vessel from the inside while model F6-HPS-21 is mounted from the outside (externally). Models F7-HSS and F6-MHS2 can be installed internally or externally.
~ Series F6 Service: Compatible liquids. Wetted Materials: See model table on catalog page. Temperature Limit: F6-SS & F6-MHS: -4 to 257°F (-20 to 125°C). F6-HPS-11, 21, 31: 14 to 176°F (-10 to 80°C). Pressure Limit: F6-SS & F6-MHS: 218 psi (15 bar). F6-HPS-11, 21, 31: 116 psi (8 bar). Enclosure Rating: General purpose. Switch Type: SPST Hermetically sealed reed switch, reversible for NO or NC. Electrical Rating: 20 VA: 0.17 A @ 120 VAC, 0.08 A @ 240 VAC. Electrical Connections: 22 AWG, 11.811" (300mm) long. Process Connection: F6-SS: 1/8" NPT, HPS-21, 31: 1/2" NPT, F6-MHS, F6-HPS-11: M16*2. Mounting Orientation: F6-SS: vertical ±20°, F6-MHS/HPS: horizontal with index arrow pointing up or down. Specific Gravity: F6-SS: 0.65, F6-MHS: 0.85, F6-HPS-11, 21, 31: 0.6. Weight: F6-HPS-11, 21: 1.23 oz (38 g), F6-MHS-31: 1.41 oz (40 g), F6-MHS: 3.35 oz (95 g), F6-SS: 1.59 oz (45 g). Agency Approvals: CE.
~ Series F7 Electrical Rating (Maximum): F7-SB, -SS2 AC: 25 VA, 1.0A, 200 V DC: 10 W, 1.0 A, 200 V F7-PP, -BT, -HSS, -MHS AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V F7-HPS-1, -2 AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V (F7-HSS is rated explosion-proof for Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III). Mounting Connection: 1/8" NPTM (all vertical mount), 1/2" NPTM (F7-HPS-2, F7-HSS), M16 x 2 (F7-HPS-1), 1/2" x 13 thread (F7-MHS). Wire Leads: 22 AWG x 18" (46 cm), vertical mount models; 22 AWG x 39" (1 m), models F7-HPS-1, -2; 22 AWG x 24" (61 cm), models F7-HSS, -MHS. Magnet: Alnico (F7-SB, -PP, -BT, -HPS), ceramic (F7-SS2, -HSS, -MHS). Weight: 2 oz. (58 g), F7-SB; 1.2 oz. (34g), F7-SS2; 0.8 oz. (23 g), F7- PP; 0.7 oz.. (20 g), F7-BT; 1.5 oz. (43 g), F7-HPS-1; 2 oz. (57 g), F7- HPS-2 and -MHS; 3 oz. (94 g), F7-HSS.
