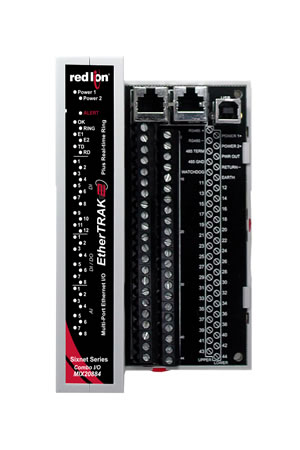

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-16 Isolated Thermocouple Inputs, PoE
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: EB-16ISOTC-D
Weight: 1.5 lb(s)
On Hand: 0
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
- Analog Input Channels
- Analog Input Ranges: +/-250 mV, Thermocouples supported J,K,E,R,T,B,L,N & S
- A/D resolution 16 bits (0.003%)
- Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- Input impedance (resistance): 200 Kohms
- DMRR (differential mode) 66 db at 50/60 Hz
- Fastest update time (all 16 channels): 200 ms
- Accuracy typical uncalibrated +/- 0.5 °C
- Common mode input voltage:
- Between two input terminals +/- 60VDC
- Between inputs and ground 300 volts
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
EtherTRAK-2 I/O Series, Module-16 Isolated Thermocouple Inputs, PoE
Brand_Name:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Analog Input:16TC
Feature: PoE Capable:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | EtherTRAK-2 I/O Series Modules |
| Analog Input | 16TC |
| Feature: PoE Capable | Yes |
