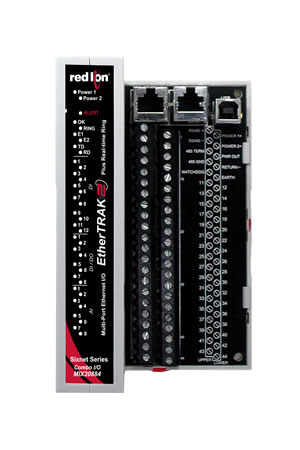

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-10 RTD Inputs, PoE
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: EB-10RTD-D
Weight: 1.55 lb(s)
On Hand: 0
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Analog Input Channels
- RTD input range: -200-850 deg C
- RTD overall accuracy: .05% or .5 deg C
- A/D resolution 16 bits (0.003%)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- RTD Type: 100 Ohm Platinum
- RTD Alpha: .00385 or .00392
- RTD Connections: 2 or 3-wire
- Scan time: 550 ms for all 10 channels
- Max lead wire resistance: 100 Ohms per side balanced
- RTD excitation current: 250uA pulsed to reduce self-heating
Serial Ports
- RS-485 port, Screw terminals (485+, 485-, GND) (2-wire half-duplex, isolated)
- Isolations voltage, 150V
- RS-485 networking, Up to 32 (full-load) stations
- RS-485 distance, Up to 0.5 miles (baud rate dependent)
- Baud Rates from 150 to 57,600 baud
- Protocols: master and slave: Sixnet® and Modbus RTU / ASCII
- Diagnostic LEDs: Transmit (TD) and Receive (RD)
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
EtherTRAK-2 I/O Series, Module-10 RTD Inputs, PoE
Brand_Name:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Analog Input:10 RTD
Feature: PoE Capable:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | EtherTRAK-2 I/O Series Modules |
| Analog Input | 10 RTD |
| Feature: PoE Capable | Yes |
