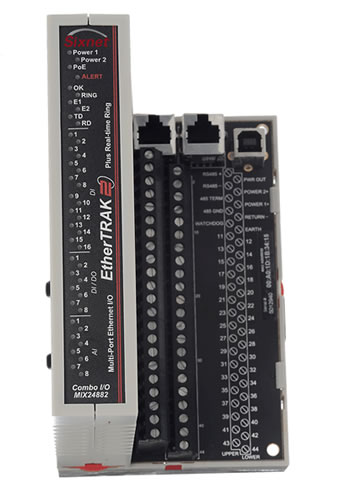

Representative photo. Please check item description for details.

EtherTRAK-2 I/O Series, Module-32 Mixed Inputs/Outputs

https://www.branom.com/web/image/product.template/529634/image_1920?unique=d14d914
(0 review)

Manufacturer: Red Lion Controls, Inc.

Mfg Product Code: E2-MIX20884-D

Weight: 1.45 lb(s)

On Hand: 0

Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.

Features

Isolated Discrete Input Channels

Channels: 1-4  Voltage range: 5 – 30 VDC  Guaranteed ON voltage: 3.0 VDC  Guaranteed OFF voltage: 1.5 VDC  Guaranteed OFF current: 1 mA DC  Input resistance (@ 24 VDC): 2.5K Ohms  Input current (@ 24 VDC): 9.6 mA  Common mode and channel-to-channel Isolation: 150 VDC  Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)  Fastest response: 1 ms (400 Hz. max. counting rate)  Special fast counting rate: Up to 50 KHz  Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Non-Isolated Discrete Input Channels

Channels: 5-12  Voltage range : 10 – 30 VDC  Guaranteed ON voltage: 9.0 VDC  Guaranteed OFF voltage: 5.0 VDC  Guaranteed OFF current: 2 mA DC  Input resistance: 10K Ohms  Input current (@ 24 VDC) 3 mA  Input Polarity: Sourcing (apply power to active) or sinking (ground closure) on 8 inputs  Input Protection: High Impedance with overvoltage protection  Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)  Fastest response: 1 ms (400 Hz. max. counting rate)  Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Non-Isolated Combination Discrete Input Channels

Channels: 13-20  Channel Type: Discrete input and discrete output combination channel (software selectable)  Voltage range : 10 – 30 VDC  Guaranteed ON voltage: 9.0 VDC  Guaranteed OFF voltage: 5.0 VDC  Guaranteed OFF current: 2 mA DC  Input resistance: 10K Ohms  Input current (@ 24 VDC) 3 mA  Input Protection: High Impedance with overvoltage protection  Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)  Fastest response: 1 ms (400 Hz. max. counting rate)  Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Discrete Output Channels

  • Output voltage range 10-30 VDC
  • Max. output power: 1A per channels, 8A per module, .8A at 60°C 1 channel, .4A at 60°C 8 channels at 24 VDC
  • Max. off state leakage: 0.01 mA (less than 10 uA)
  • Short circuit protection, self-reset fuses (trip above 1.5 Amp)
  • Min. load: 1 mA
  • Inrush current: 5 Amps (100 ms surge)
  • Typical on resistance: 0.3 Ohms (Drop 0.3 VDC @ 1 Amp)
  • All channels Scan rate: 1 ms

Analog Input Channels

  • Analog Input Range: 4-20 mA
  • A/D resolution 16 bits (0.003%) 10 bits (fast option)
  • Full scale accuracy: +/- 0.02% (at 20 °C, 16 bit mode)
  • Temperature coefficient +/- 50 ppm per °C (span and offset)
  • Input impedance (resistance): 100 ohms
  • Protection: Self-resetting short circuit protection fuses
  • DMRR (differential mode) 66 db at 50/60 Hz
  • Fastest update time [# of chan.]: 880 ms [all] -16-bit; 145 ms [all] -14-bit; 1 ms [2] -10-bit

Analog Output Channels

Analog output range: 4-20 mA, 0-20 mA, 0-5 VDC  D/A resolution 16 bits (less than 1 uA)  Full scale accuracy +/-0.02% (at 20°C); All ranges after calibration  4-20mA full scale accuracy +/-0.02% (at 20°C); Before calibration  0-20mA full scale accuracy +/-0.1% (at 20°C); Before calibration  Span and offset temp. +/- 50 ppm per °C typ.  Max. output settling time 5 ms (to .05%)  Max. Load resistance (@ 24 V) 750 Ohms  Max. Load resistance (@ 10V) 300 Ohms  Current limiting short circuit protection  0-5VDC full scale accuracy +/-0.5% (at 20°C); Before calibration  Min. load resistance (0-5VDC range): 20 KOhms

​Configuration

  • Configured using Sixnet I/O Tool Kit
  • Graphical User Interface (GUI)

$ 1,513.00 1513.0 USD $ 1,513.00

$ 1,513.00

Not Available For Sale

  • Brand_Name
  • Manufacturer Product Family
  • Feature: Analog Output(s)
  • Digital Input
  • Digital Output
  • Analog Input
  • Feature: PoE Capable

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

EtherTRAK-2 I/O Series, Module-32 Mixed Inputs/Outputs

  • Brand_Name
  • Manufacturer Product Family
  • Feature: Analog Output(s)
  • Digital Input
  • Digital Output
  • Analog Input
  • Feature: PoE Capable

$ 1,513.00 1513.0 USD $ 1,513.00

$ 1,513.00

Not Available For Sale

This combination does not exist.

Brand_Name:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Feature: Analog Output(s):4
Digital Input:12
Digital Output:8
Analog Input:8
Feature: PoE Capable:No

Specifications

Brand_Name Red Lion
Manufacturer Product Family EtherTRAK-2 I/O Series Modules
Feature: Analog Output(s) 4
Digital Input 12
Digital Output 8
Analog Input 8
Feature: PoE Capable No
