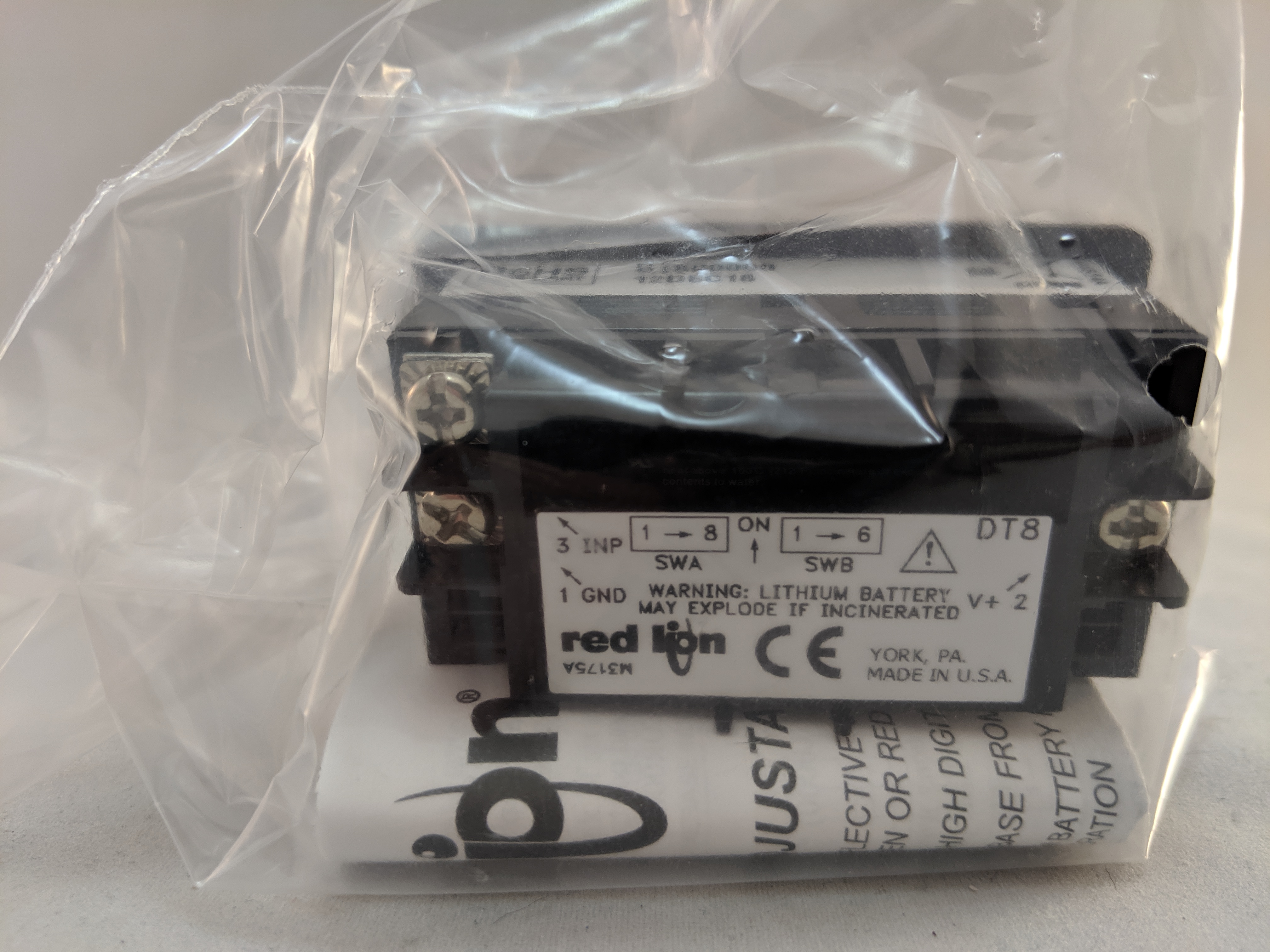

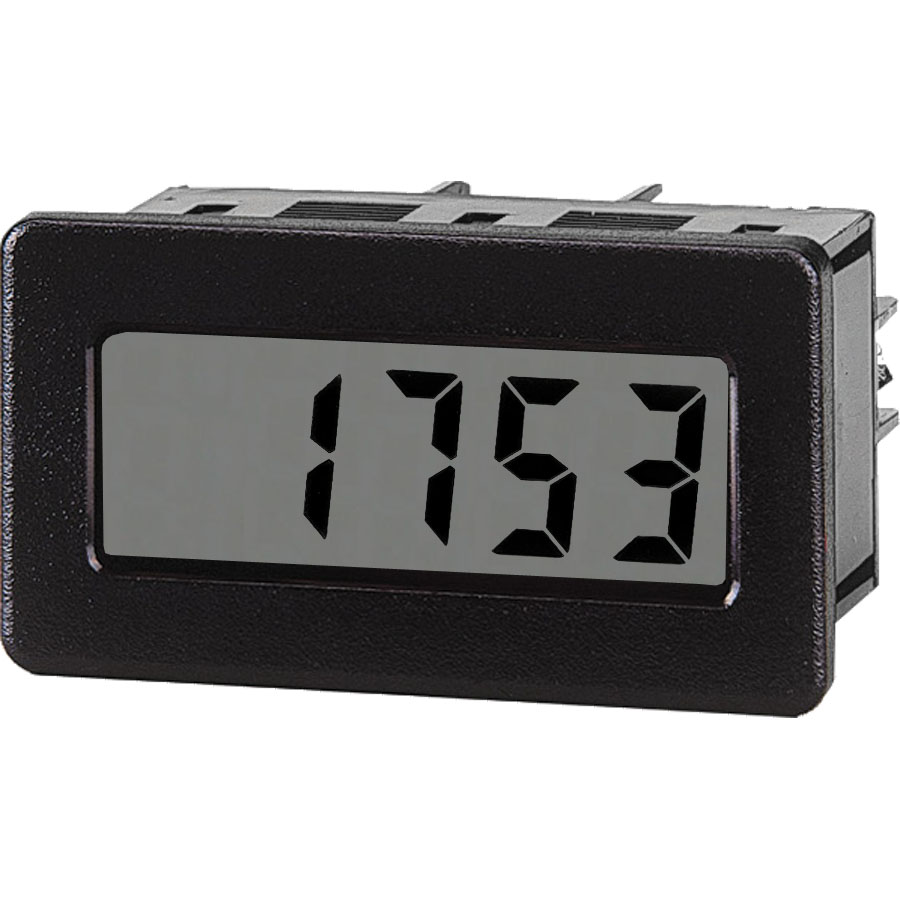

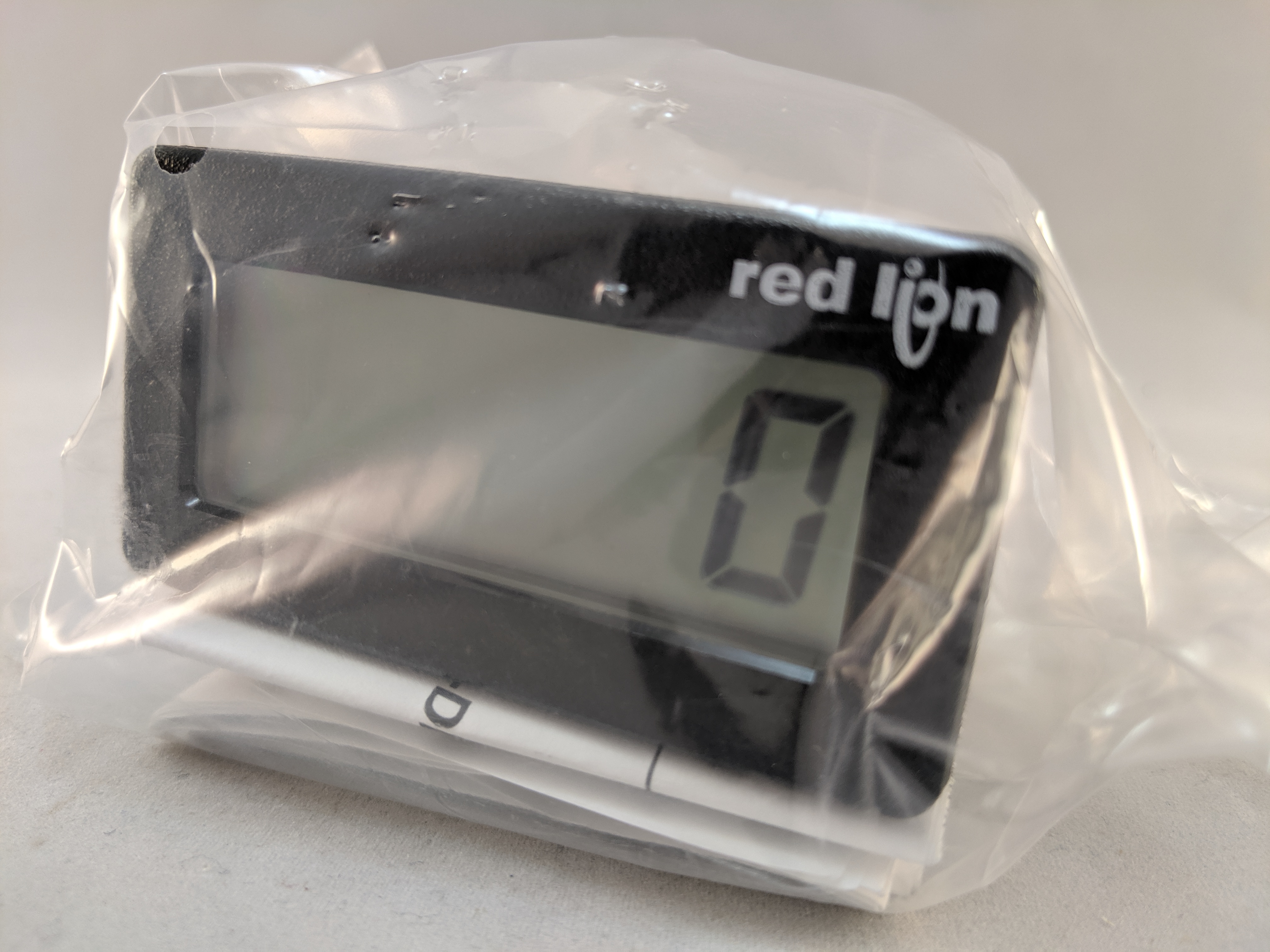

CUB Series Ditak 8 Adjustable Time Base Tachometer
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: DT800000
Weight: 0.21 lb(s)
Red Lion's CUB® Panel Meters: powerful solutions in compact sizes. The CUB5 offers the ultimate in panel meter flexibility, from comprehensive user programming to the optional setpoint control and communication capabilities. The CUB4 is ideal for basic applications, with a large display, a miniature container, and no programming needed. The CUB7 is a dedicated function eight-digit panel meter that's incredibly easy to use, with features normally only available on larger models.
Features
- LCD positive reflective
- 39 mm x 75 mm bezel (68 mm x 33 mm panel cutout)
- 5 Digit, 0.6" (15.2 mm) LCD
- Adjustable DIP switch timebase from 4 msec to 63 sec
- Internal Lithium Battery provides over 5 years of continuous operation
- NEMA 4x/IP65 sealed front panel bezel
- Accepts Magnetic or Logic type signal inputs
- Wire connections made via screw clamp type terminals
CUB Series Ditak 8 Adjustable Time Base Tachometer
Brand_Name:Red Lion
Manufacturer Product Family:CUB Series Panel Meters
Measurement Minimum:0
Function:Rate Meter
Process Display:5 Digit, 0.6"(15 mm) Reflective LCD
SIZE:2.6" (69 mm) x 1.3" (33 mm)
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | CUB Series Panel Meters |
| Measurement Minimum | 0 |
| Function | Rate Meter |
| Process Display | 5 Digit, 0.6"(15 mm) Reflective LCD |
| SIZE | 2.6" (69 mm) x 1.3" (33 mm) |
