Reotemp 300 Series Dual Mode Thermometer, 5" Dial, Back Connected, 36" Stem, 0/200°F Dial Range, RTD Pt100/385, 3-wire, 4-20mA Transmitter, Explosion Proof Alum Head, 1/2" NPT, Std. Window Glass, Stainless Steel Tag

Manufacturer: Reotemp Instrument Corp

Mfg Product Code: DM4B360F43-RCETTS

Weight: 5.0 lb(s)

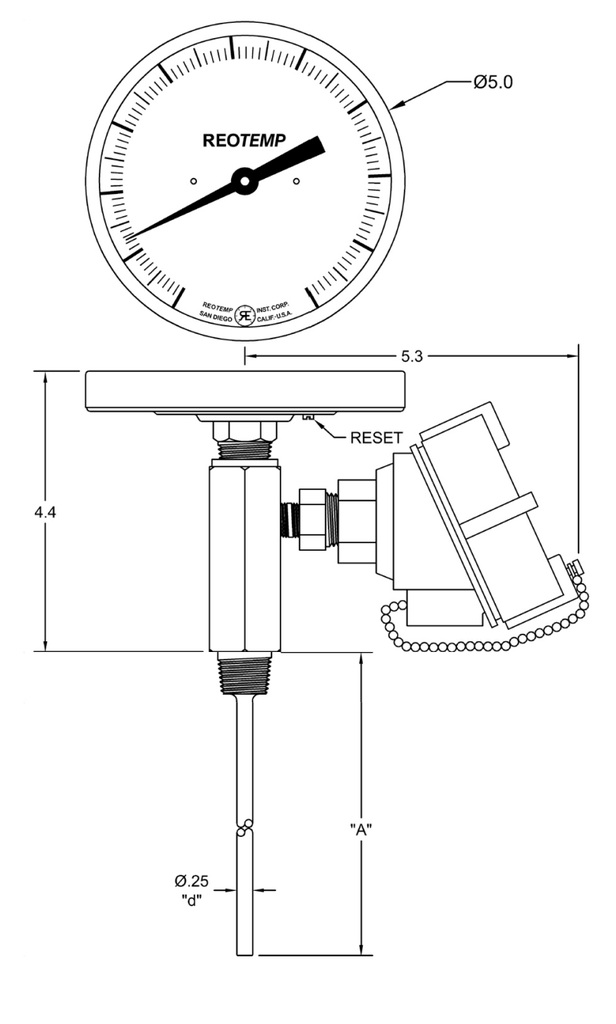

DM4B: Dual Mode Thermometer, 5" DIAL, Back Connected, with 1/4" dia. Stem, 300 series
360: 36" Stem
F43: Dial Range 0/200F
RC: RTD (Pt/385/B, 100 ohm) , 3-wire
ET: Expl Proof Alum Head with 4-20 mA Transmitter
Std. fixed 1/2"NPT
Std. Window Glass
TS: TAG, Stainless

REOTEMP’s Dual Mode Thermometer (DMT) is a convenient, multi-purpose indicator for local and remote temperature monitoring. This rugged dual-sensor system puts TWO independent sensors in ONE THERMOWELL, and allows easy tie-in to process controls. Both sensors are NIST traceable. Special sensor encapsulation and optional liquid filling make the DMT the most rugged, durable instrument of its kind.

• Allows independent local and remote reading (Up to 1000°F) from one thermowell
• Redundant sensors for simple, effective calibration or spot checking without removing instrument from thermowell
• Easily installed in any standard thermowell
• Interchangeable with existing thermometer, RTD, or Thermocouple
